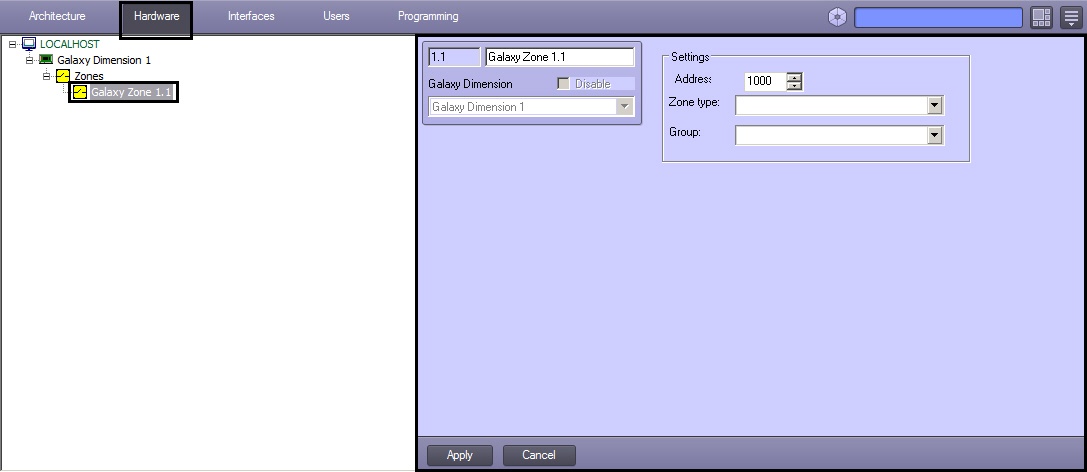

Security zones of the Honeywell Galaxy Dimension control panel are configured in the settings panel of the Galaxy zone object. This object is created from the Galaxy Dimension object on the Hardware tab of the System settings dialog box.

Honeywell Galaxy Dimension security zones are configured as follows:

  1. Go to the settings panel of the Galaxy Zone object.

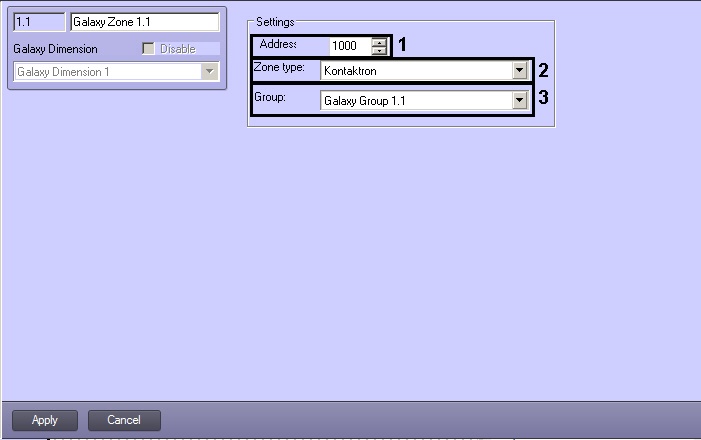

  2. In the Address field, enter the address displayed for the specific security zone into the operator’s menu of the Honeywell Galaxy Dimension control panel (1).

    Note.

     For more information on security zone addressing, refer to the official documentation of the Honeywell Galaxy Dimension control panel.
  3. Select the type of security zone from the Zone type drop-down list (2).
  4. From the Group: drop-down list select the group to which the zone belongs (3).
  5. To save changes, click Apply.
  6. Repeat steps 1-4 for all security zones.

Configuration of Honeywell Galaxy Dimension security zones is completed.
