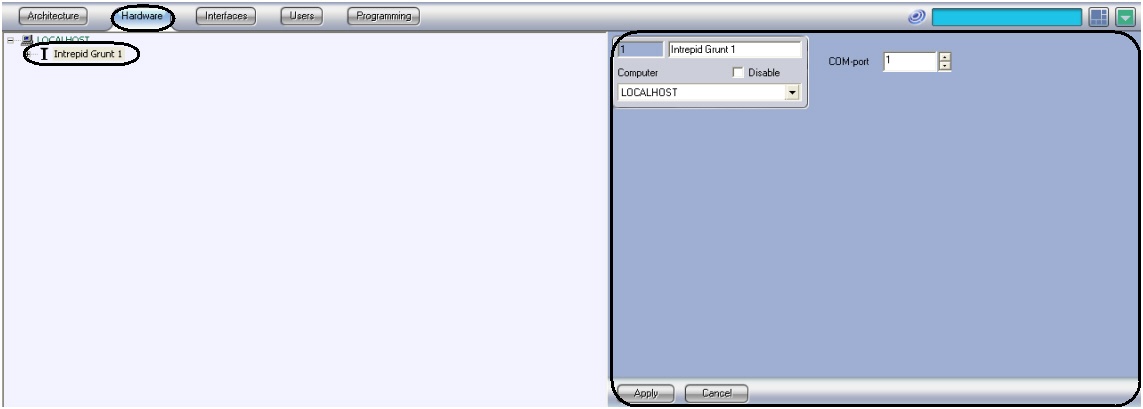

To configure Intrepid Grunt's connection in ACFA Intellect, use the settings panel of the relevant Intrepid Grunt object. To find this object, go to the Settings dialog box, click the Hardware tab, and browse the object tree of the relevant Computer object.

To configure Intrepid Grunt's connection to the Server:

  1. Go to the Intrepid Grunt object's settings panel.

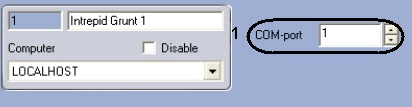

  2. With the help of the up arrow and down arrow buttons, in the COM Port field, enter the number of the COM port for the Intrepid Grunt connection (1).
  3. Click Apply.

Configuration of Intrepid Grunt's connection to the Server is now complete.
