To configure the Sigur ACS access points, do the following:

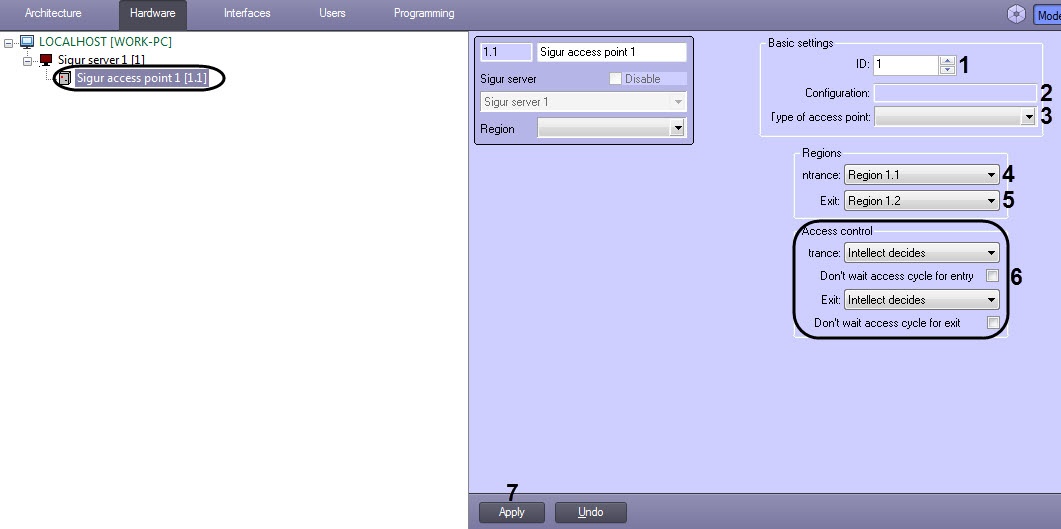

  1. Go to the settings panel of the Sigur access point object, which is created on the basis of the Sigur server object in the Hardware tab of the System settings dialog box.

  2. In the ID field (1), enter the access point number on the Sigur server.

    Note

    The Configuration field (2) displays the access point configuration, which is set using the switch on the card of the corresponding Sigur ACS controller.

  3. From the Type of access point drop-down list (3), select the type of access point managed by the controller:
    • Barrier;
    • Door;
    • Gate;
    • NFC terminal;
    • Turnstile.
  4. From the Entrance drop-down list (4), select the Region object corresponding to the area on the side of exit from the access point.
  5. From the Exit drop-down list (5), select the Region object corresponding to the area on the side of entrance to the access point.
  6. Set the access control parameters at entrance and exit (6):

    1. From the Entrance and Exit drop-down lists, select the decision-making side for granting access:

      1. Intellect decides - access decision is automatically made by ACFA-Intellect.

      2. Operator decides - access decision is made by the operator.

        Note.

        To process the request operator is to create a Photo ID interface object and configure it for the Operator’s query (Access granted) event. For more information about this object and its functions, please refer to Photo ID User Guide.
    2. Set the Don’t wait access cycle for entry and Don’t wait access cycle for exit checkboxes if it is necessary to record the passage immediately after placing the access card to the reader. If the passage is considered to be performed only after passing the access point (i.e. door sensor is triggered), unset this checkbox.
  7. Click the Apply button to save all changes (7).

Sigur ACS access points are now configured.
