To configure the Sigur ACS output, do the following:

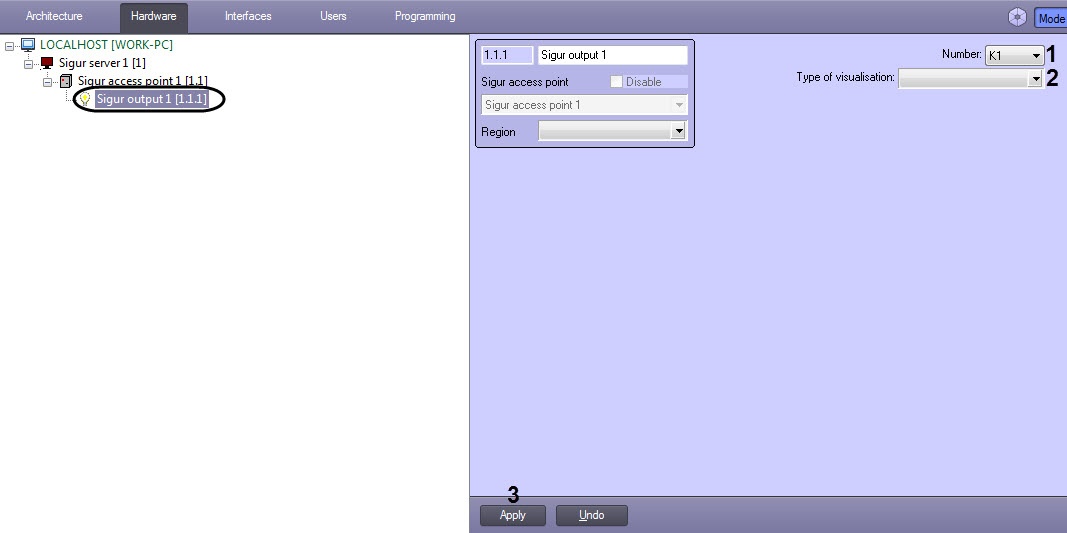

  1. Go to the settings panel of the Sigur output object, which is created on the basis of the Sigur access point object in the Hardware tab of the System settings dialog box.
  2. From the Number drop-down list (1), select the output number.
  3. From the Type of visualisation drop-down list (2), select the corresponding set of icons for the output.
  4. Click Apply (3).

Sigur ACS output is now configured.
