It's required to configure users for using SNMP-traps v.3.

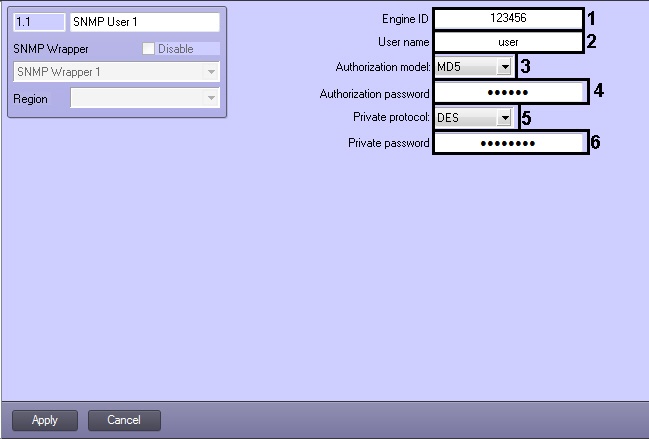

Users are configured on the settings panel of the SNMP User object created under SNMP Wrapper  object.

Configure user as follows:

  1. In the Engine ID field enter ID of authorization access system (1).
  2. Enter user name for authorization (2).
  3. From the Authorization model: drop-down list select the required hashing algorithm (3).
  4. Enter password for authorization (4).
  5. From the Private protocol: drop-down list select select the hashing algorithm of sending data (5).
  6. Enter the password for encryption of sending data in the Private password field (6).
  7. Click Apply button to save changes.

User configuration is now completed.
