The Alcoframe breathalyzer is configured in the following way:

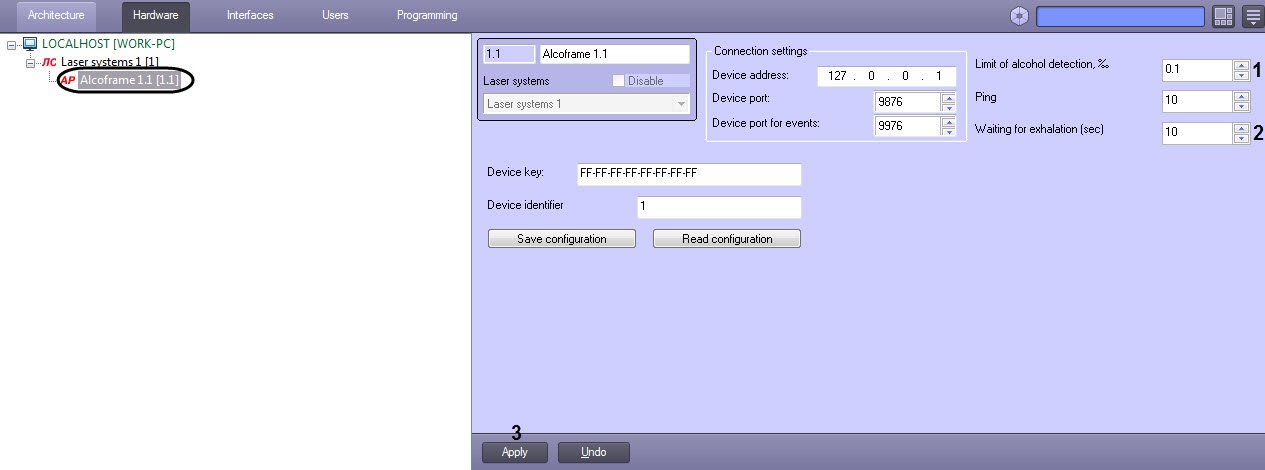

  1. Go to the Alcoframe object settings panel.
  2. In the Limit of alcohol detection, ‰ field (1), specify the value of alcoholic content in permille, at which the Alcohol level is exceeded event will be generated.
  3. In the Waiting for exhalation (sec) field (2), enter the time in seconds during which the breathalyzer will be waiting for a person’s exhalation after the Test the alcohol level command (see Managing the Alcoframe breathalyzer).
  4. Click Apply (3).

The Alcoframe breathalyzer is now configured.
