The BACnet devices are created automatically during the devices search (see Activation of the BACnet Wrapper module and the BACnet devices search). No additional configuration is required.

To add a BACnet device manually or to configure a BACnet device, do the following:

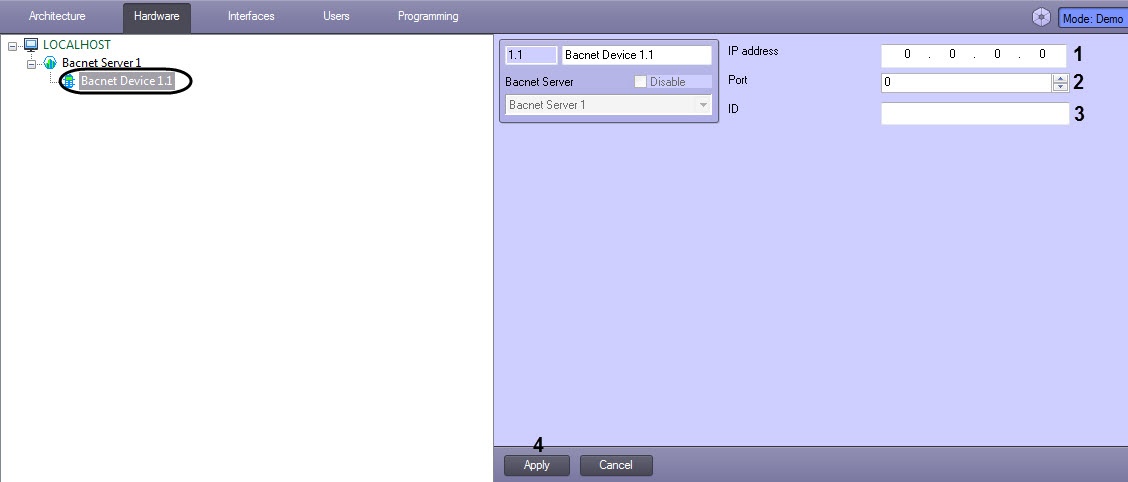

  1. Go to the Bacnet Device object settings panel, which is created on the basis of the Bacnet Server object.
  2. In the IP address field (1) enter the IP address of the BACnet device.
  3. In the Port field (2) enter the port of the BACnet device.
  4. In the ID field (3) enter the identification number of the BACnet device.
  5. Click the Apply button (4) to save the changes.

Configuring the BACnet device is complete.
