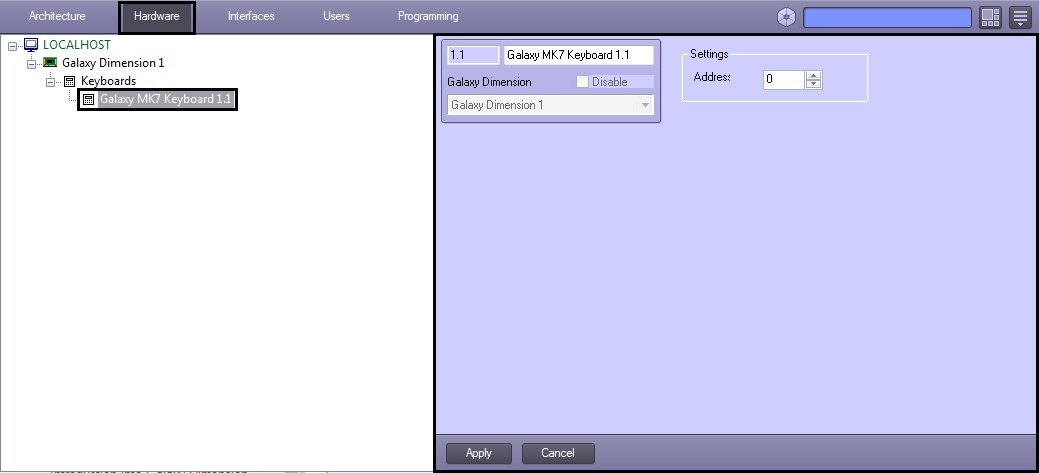

The MK7 keyboard is configured through the settings panel of the Galaxy MK7 Keyboard object. This object is created from the Galaxy Dimension object on the Hardware tab of the System settings dialog box.

NOTE.

The Galaxy Dimension object must match the Galaxy Dimension panel to which the keyboard is connected.

The MK7 keyboard is configured as follows:

  1. Go to the settings panel of the Galaxy MK7 keyboard object.

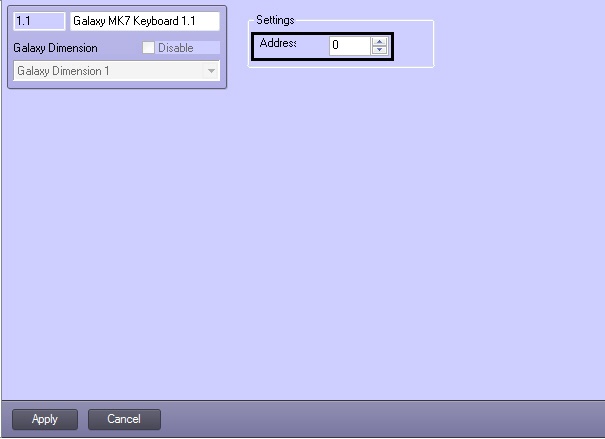

  2. In the Address field, enter the address displayed for the specific keyboard into the operator’s menu of the Galaxy Dimension control panel (1).
  3. To save changes, click Apply (2).
  4. Repeat steps 1-3 for all MK7 keyboards connected to the panel.

Configuration of the MK7 keyboard is completed.
