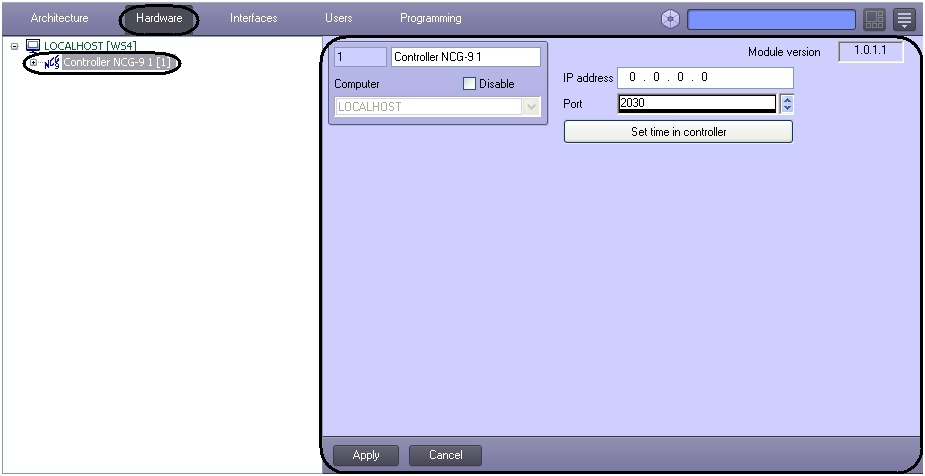

To configure the NCG-9 controller connection go to the Controller NCG-9 object’s settings panel. To create this object, go to the System settings dialog box, click the Hardware tab and select a parent Computer object.

To configure the NCG-9 controller connection, do the following;

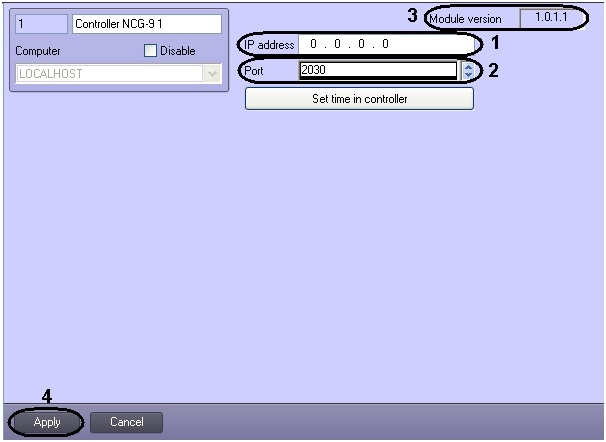

  1. Go to the Controller NCG-9 object’s settings panel.

    Note.

    In the Module version field the version of the NCG-9 controller integration module is displayed (3).
  2. Enter the IP-address of the NCG-9 controller in the IP-address field (1).
  3. Using up-down buttons enter the number of port to which the controller is connected in the Port field (2).
  4. Click Apply to save changes (4).

Configuring of the NCG-9 controller connection is completed.
