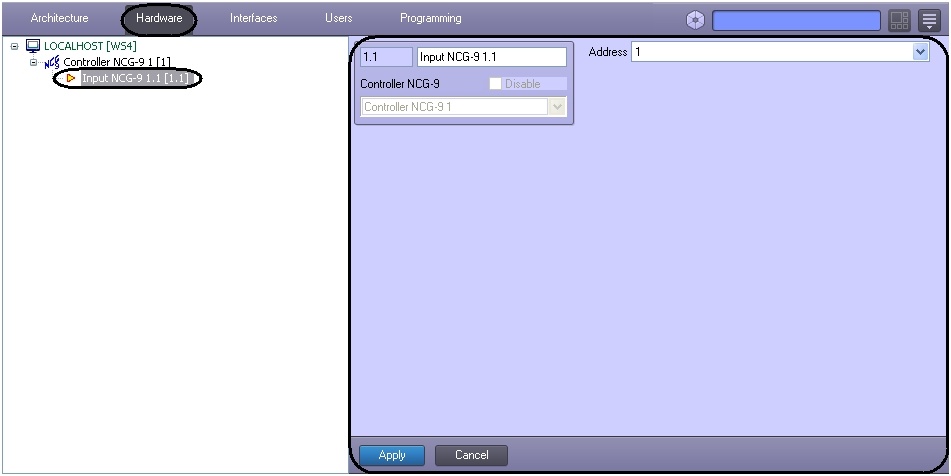

To configure the NCG-9 input go to the Input NCG-9 object’s settings panel. To create this object, go to the System settings dialog box, click the Hardware tab and select a parent Controller NCG-9 object.



To configure the NCG-9 input, do the following:

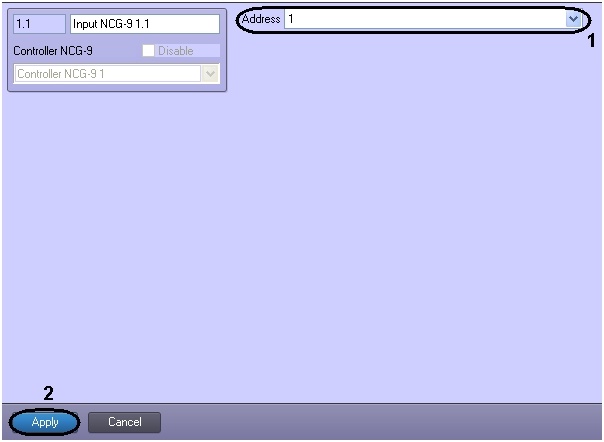

  1. Go to the Input NCG-9 area object’s settings panel.
  2. From the Address drop-down list select the number of corresponding input (1).
  3. Click Apply to save changes (2).

Configuring of the NCG-9 input is completed.
