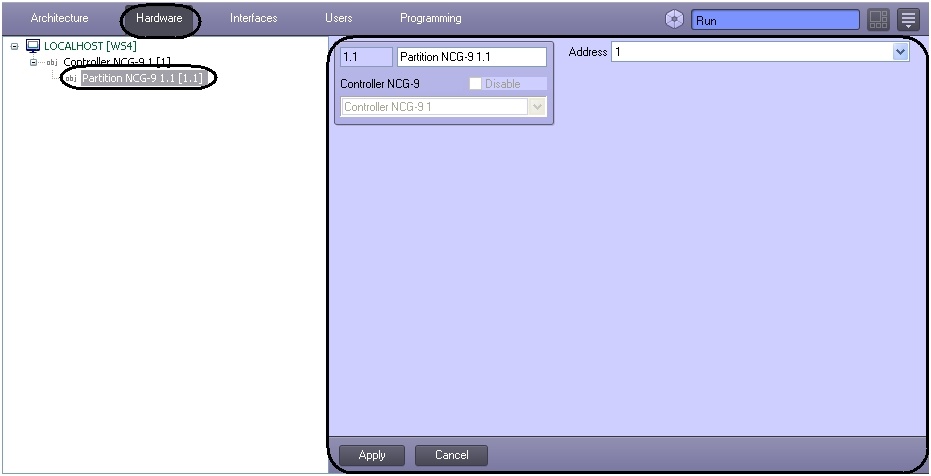

To configure the NCG-9 partition go to the Partition NCG-9 object’s settings panel. To create this object, go to the System settings dialog box, click the Hardware tab and select a parent Controller NCG-9 object.

To configure the NCG-9 partition, do the following:

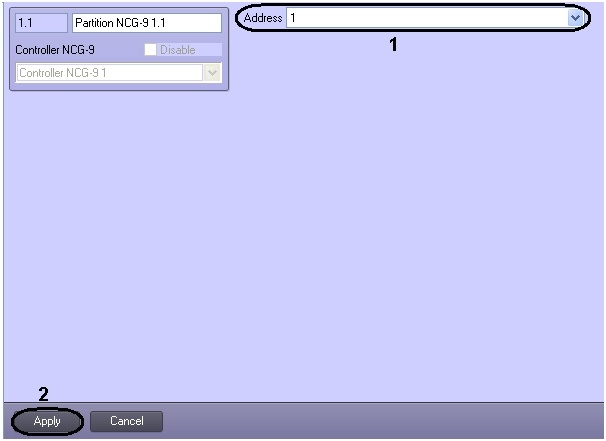

  1. Go to the Partition NCG-9 area object’s settings panel.
  2. From the Address drop-down list select the number of area from which events are to be received (1).
  3. Click Apply to save changes (2).

Configuring of the NCG-9 partition is completed.
