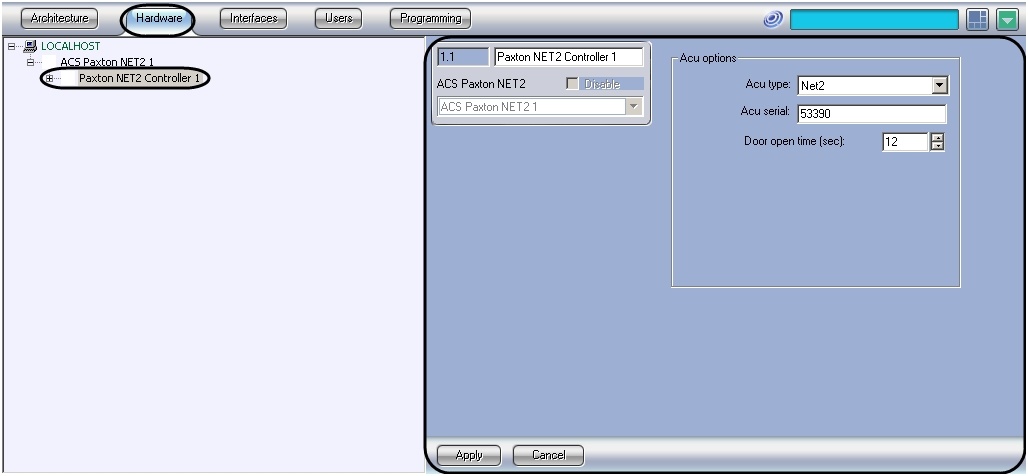

In the ACFA Intellect system, configure the Paxton controller connection on the “Paxton NET2” controller settings panel which is on the Hardware tab of the System settings dialog box.

To configure the Paxton controller, follow these steps:

  1. Go to the settings panel of the “Paxton NET2” controller.

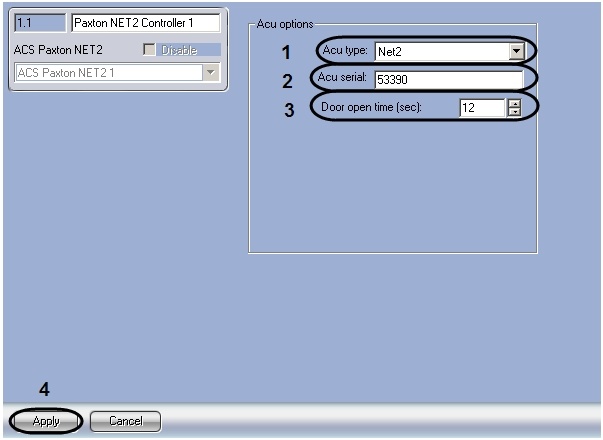

  2. From the Acu type drop-down list, select the type of Paxton controller (1).
  3. In the Acu serial field enter serial number of the Paxton controller (2).
  4. In the Door open time field, using the up and down buttons, enter the time in seconds during which the door will remain open after access (3).
  5. Click the Apply button (4).
  6. Restart Intellect to establish the connection with the controller.

Configuration of the Paxton controller is complete.
