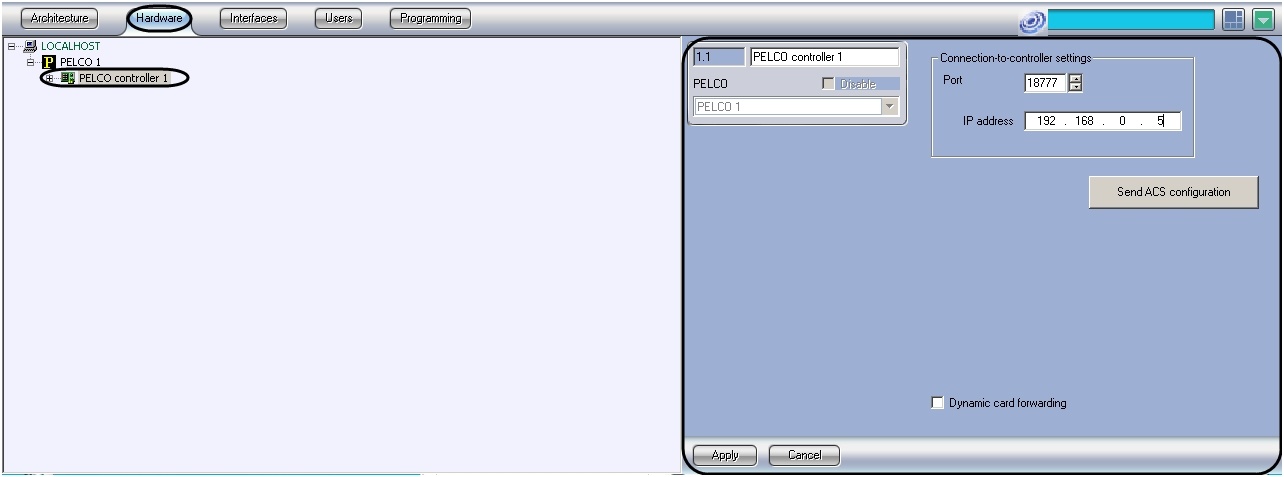

In the ACFA Intellect system, configure the Pelco controller connection on the Pelco controller settings panel which is on the Hardware tab of the System settings dialog box.



To configure the Pelco controller connection, follow these steps:

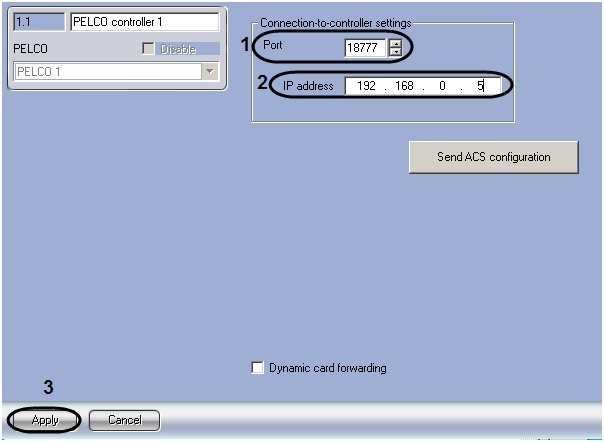

  1. Go to the settings panel of the Pelco Controller object.

  2. In the Port field, use the up and down buttons to set the connection port for the Pelco controller (1).

    Note.

    By default, the controller connection port is set to 18777. The connection port may be changed using the web-interface controller. For details, see the manufacturer’s reference documentation.

  3. In the IP address field, assign a mask for the Pelco controller IP address (2).

    Note.

    You may view the controller IP address on the display when you activate the controller (each display corresponds to a number, while the operation of the display is identified with a point in the IP-address). The IP address may be changed using the web-interface controller, for details, see the manufacturer’s reference documentation.
  4. Click the Apply button (3).

Configuration of the Pelco controller is complete.
