To configure the objects and their events that cause the Photo ID window to be displayed, go to the Photo ID object's setup panel and use the Objects and events list.

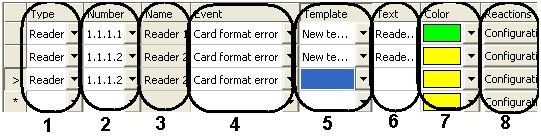

The table below describes the Objects and events list elements.

Seq. no.

Field description

1

Use the Type field to select an object type (ACS Reader, Video Camera, Actuator, Security/Fire Sensor).

2

Use the Number field to select an object by number (ID) assigned to it in the Intellect system.

3

The Name field shows the name of the object selected.

4

Use the Event field to select an event for the object selected. The list contains only those events that are allowed for the object selected.

5

Use the Template field to select a template to show for the event selected. The list contains only those templates that are allowed for the event selected.

6

Use the Text field to enter the text to show in the info line (the upper part of the template selected) when the selected event occurs.

7

Use the Color field to select a color for the info line. By default, the info line has the same color as the template's main color. If you select a different color, the info line will change its color from the template's main color to the color selected (3 times with a frequency of approx. 1 second).

8

Use the Actions field to assign each button of the template an action. This action is sent to the object when the button is clicked.
