Rakinda ACS connection is configured as follows:

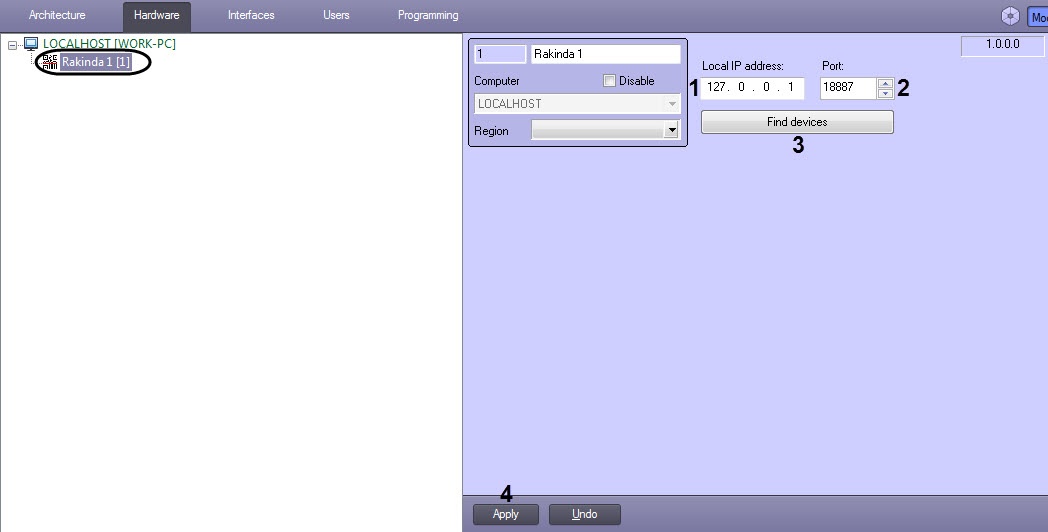

  1. Go to the settings panel of the Rakinda object, which is created on the basis of the Computer object on the Hardware tab of the System Settings dialog box.
  2. In the Local IP address field (1), enter the IP address of the ACFA-Intellect Server.
  3. In the Port field (2), enter the port of the ACFA-Intellect Server.
  4. Click the Find devices button (3) to find the connected Rakinda device and automatically create an object for it.
  5. Click the Apply button (4) to save the changes.

Rakinda ACS connection is now configured.
