For each Satel INTEGRA panel, one Satel INTEGRA Server is created. For this, do the following:

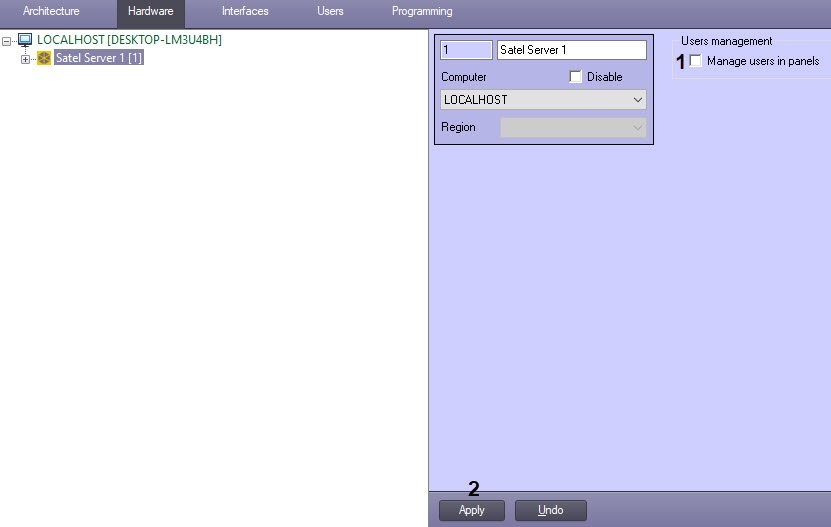

  1. Go to the settings panel of the Satel Server object, created on the basis of the Computer object on the Hardware tab of the System settings dialog window.

  2. Set the Manage users in panels checkbox (1) to enable user management in the panel.
  3. Click the Apply button (2) to save the changes.

Configuring the Satel INTEGRA Server is completed.

Updating the Satel INTEGRA system

Starting with ACFA Intellect version 7.0, the structure of the Satel INTEGRA hardware tree was changed. If an existing earlier version is updated, the database will be automatically converted the first time the server is started, while the IDs of the existing Satel INTEGRA devices won’t be changed.

Attention!

It is recommended to make a backup copy of the Satel INTEGRA system before updating.

If several Satel INTEGRA Servers are created in the system, it is necessary to update ACFA Intellect on all servers simultaneously. Don’t start the server with a new version of ACFA Intellect while the server with an earlier version is running, because this will remove the Satel INTEGRA objects from the hardware tree.
