To set the access log:

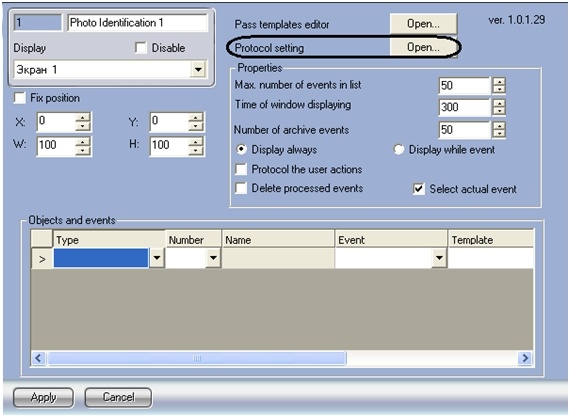

  1. Click Open... on the Photo ID object's setup panel

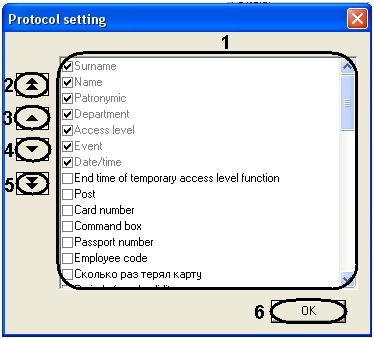

    The Access log configuration dialog box opens. Use the dialog box to select the database fields to show on the operator's query pane when an event occurs.   The mandatory fields (always shown) are grayed out.
  2. Select the check boxes next to those fields that you want to show in the access log (1).
  3. Use the arrow keys to set the order in which the fields are shown in the Photo ID window:
    1. To move a field to the top of the list, use the UP double-arrow key (2).
    2. To move a field one place up, use the UP single-arrow key (3).
    3. To move a field one place down, use the DOWN single-arrow key (4).
    4. To move a field to the bottom of the list, use the DOWN double-arrow key (5).
    5. Click Apply to save changes (6).

The access log is now configured.
