ACFA Intellect works with the Paxton ACS hardware via Net2, therefore the connection of the Net2 Server to the Intellect Server must be configured.

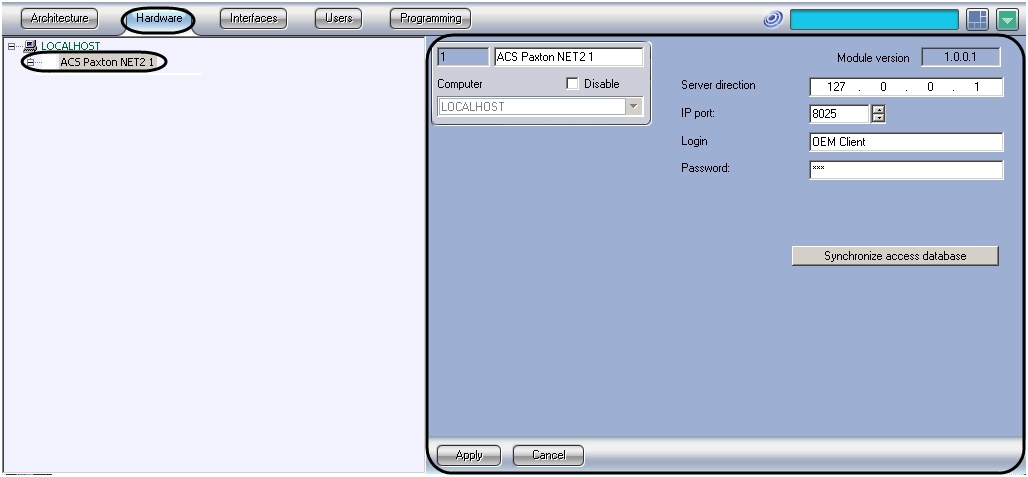

In ACFA Intellect configuring the connection of the Net2 Server to the Intellect Server is done on the "ACS Paxton NET2" settings panel, on the Computer panel in the Hardware tab of the System settings dialog box..

To configure the Paxton ACS controller follow these steps:

  1. Go to the settings panel of the “ACS Paxton NET2” object.

    Note.

    The Module version field should display the module version.

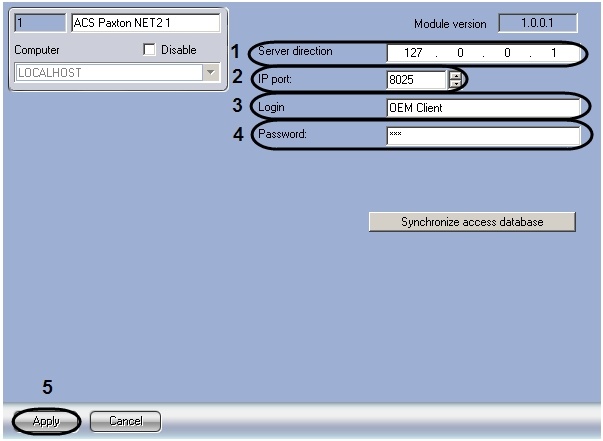

  2. In the Server direction field enter the IP-address of the computer running the Net2 Server, which is connected to the Paxton ACS hardware (1).

    Note.

    If the Net2 server is running on the same computer as the Intellect Server, then 127.0.0.1 must be entered as the address.

  3. In the IP port field, use the up and down buttons to set the connection port for the Net2 Server (2).

    Note.

    The default IP port is 8025.

  4. In the Login field specify the name of the Net2 Server (3).

    Note.

    The list of Net2 servers can be changed using the Net2Access Control utility. For details, see the reference documentation for this utility.
  5. In the Password field specify the password for the Net2 Server (4).
  6. Click the Apply button (5).
