Data exchange between the ACFA Intellect server and the Honeywell Galaxy Dimension control panel is carried out using the SIA protocol.

Note.

For more information on protocols used in the Honeywell Galaxy Dimension system, refer to the official documentation of the Honeywell Galaxy Dimension control panel.

The SIA protocol is configured as follows:

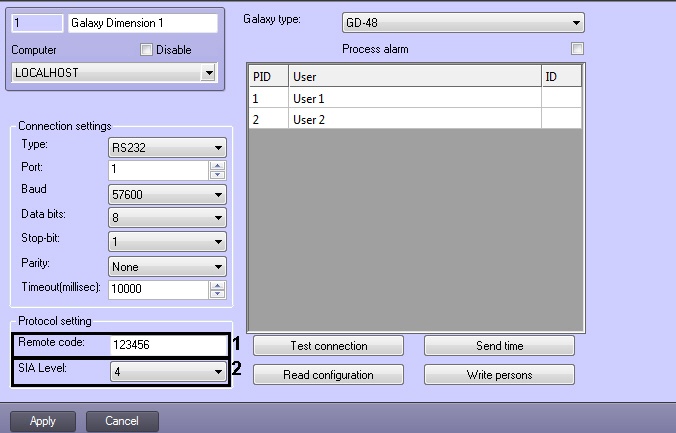

  1. Go to the settings panel of the Galaxy Dimension object.

  2. In the Remote code field, enter the password used to connect the Intellect Server to the Honeywell Galaxy Dimension control panel. This password must match the password used to remotely access the panel (1).

    Note.

    For more information on passwords in the Honeywell Galaxy Dimension system, refer to the official documentation of the Honeywell Galaxy Dimension system, for example, in the document titled Galaxy Dimension: Setup Guide.

  3. From the SIA level drop-down list, select the value corresponding to the required level of interaction between the Intellect Server and the Honeywell Galaxy Dimension control panel over the SIA protocol (2).

    SIA level

    Description of the level of interaction between the Intellect Server and the Galaxy Dimension control panel

    1

    Transmits basic information on the event

    2

    Same as level 1, but including transmission of advanced event codes

    3

    Same as level 2, but including transmission of text descriptions of events

    4

    Same as level 3, but also allows reception of commands for managing the control panel

    Note.

    Full interaction (monitoring, management) between the Intellect Server and the Honeywell Galaxy Dimension control panel is only provided through the 4th level of SIA.
  4. To save changes, click Apply.

Configuration of the SIA protocol is completed.
