By default, the position of the Access manager window is not fixed on the screen and it can be changed. When setting up the system, you can specify the position of the Access manager window on the screen and eliminate the possibility to change it.

Note.

If you specify the fixed position of the Access manager window on the screen, the caption bar won't display which increases the displaying area of the Access manager window content.

To configure the position of the Access manager window on the screen, do the following:

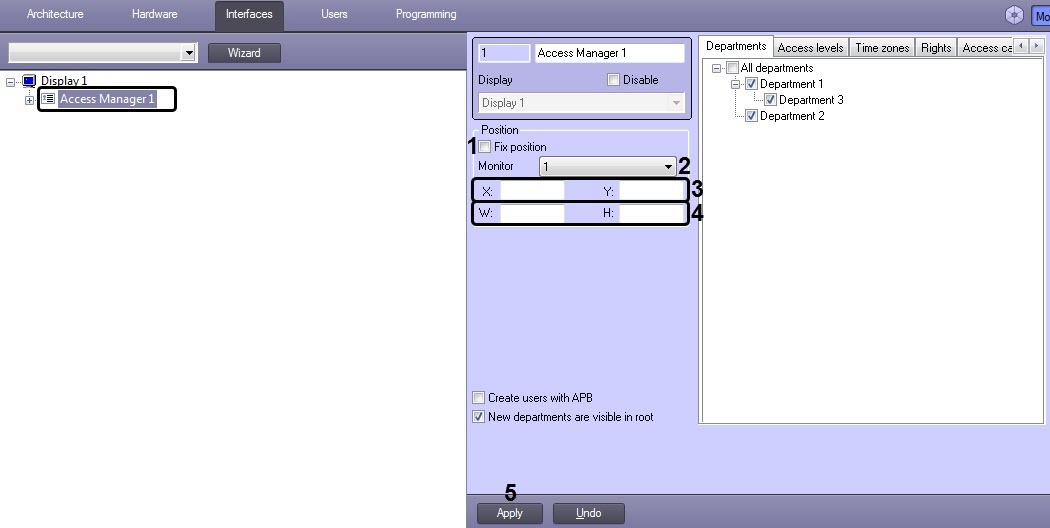

  1. Go to the settings panel of the Access manager object created under the Display object on the Interfaces tab of the System settings dialog box.
  2. Set the Fix position checkbox (1).
  3. From the Monitor drop-down list select a system monitor on which the Access Manager window is to be displayed (2).
  4. Set coordinates of the Access Manager window's upper left corner in the X: and Y: fields as percentage of width and height of the screen correspondingly (3).
  5. Set width and height of the Access Manager window in the W: and H: fields as percentage of width and height of the screen correspondingly (4).
  6. Click the Apply button (5).

Specifying fixed position of the Access Manager window on the screen is completed.
