It is possible to configure ACFA Intellect users’ access to the Honeywell Galaxy Dimension control panel. Access to certain functions of panel management can be granted based on the individual user authorized to use ACFA Intellect.

Note.

For more information on users of the Honeywell Galaxy Dimension control panel, refer to the official documentation of the Honeywell Galaxy Dimension control panel.

Users of the Galaxy Dimension control panel are configured as follows:

  1. Go to the settings panel of the Galaxy Dimension object.

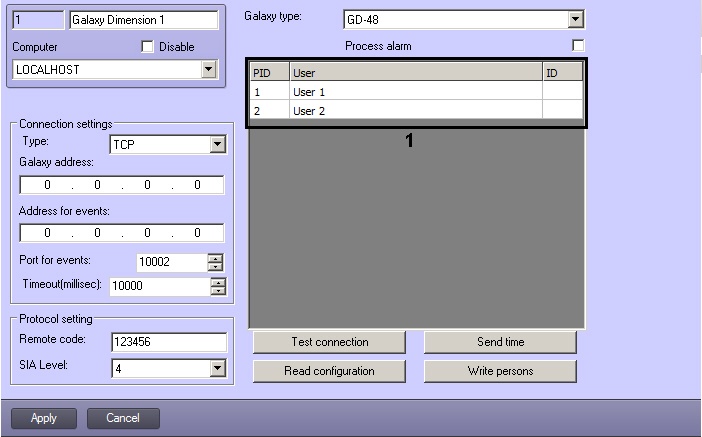

  2. The list of users registered in ACFA Intellect are automatically displayed in table (1).
  3. If an ACFA Intellect user is also a user of the Honeywell Galaxy Dimension control panel, then the user’s identification number (from 0 to 255) for the panel should be entered into the ID column of table 1.
  4. To save changes, click Apply.

Configuration of Honeywell Galaxy Dimension control panel users is completed.
