Control the Apollo internal variable

It is possible to run functions of an internal variable and set term values from the Map.

Note.

Functions of the internal variable are launched from the Map in the following way:

In the Apollo Internal Variable object menu select Execute.

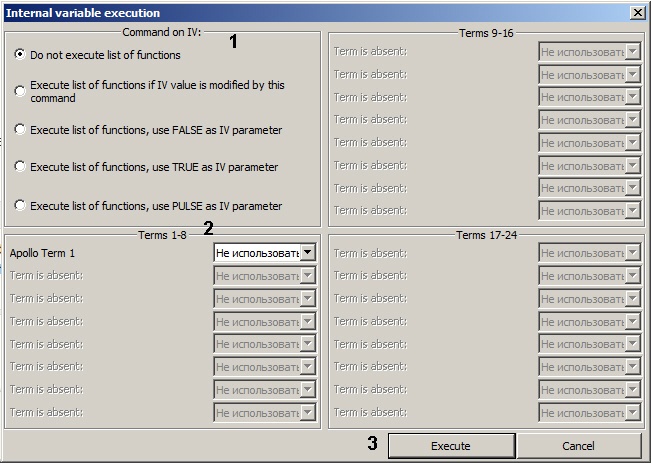

The Internal variable execution dialog box opens.
Set the switch to the position corresponding to the action to be performed (1). If you only want to set the term values without performing the IV functions, set the switch to the Do not execute list of functions position.
From the drop-down lists corresponding to the terms, select the values are to be set to the terms of the internal variable (2).
Note.
Only drop-down lists corresponding to terms created in the ACFA Intellect hardware tree are enabled (see Creating and configuring terms).
If terms of an internal variable (addresses or count) were changed after ACFA Intellect was started, these changes will not be displayed in this dialog box even if configuration was send to the controller. Restart ACFA Intellect to use changed terms.
Click Execute (3).
