To create a Photo ID object:

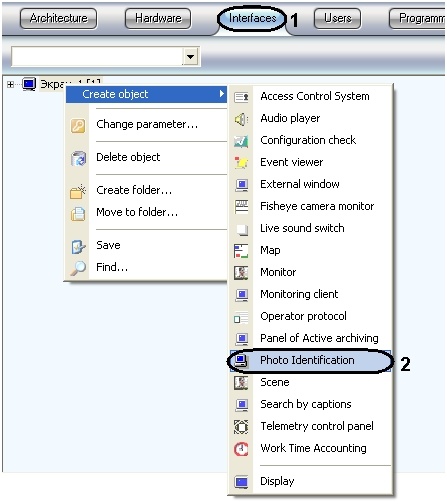

  1. Go to the Interfaces tab in the System setup dialog box (1).
  2. Right-click the chosen Screen object. A context menu appears. In the menu, go to Create object -> Photoidentification (2).

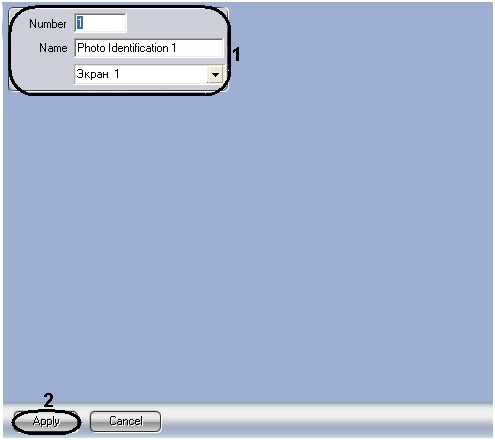

  3. Set a number and name for the Photo ID object being created(1).
  4. Click Apply (2).

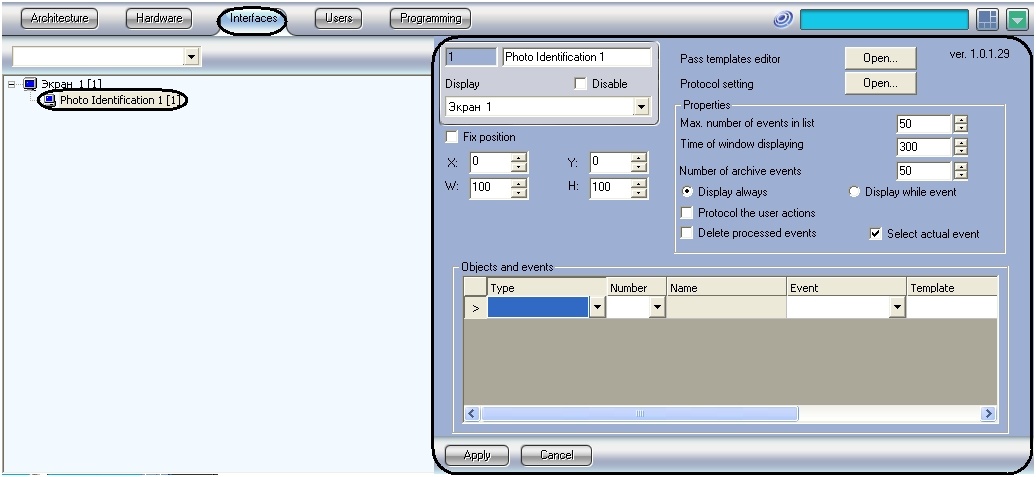

  5. As a result, the Photo ID object's setup panel appears.

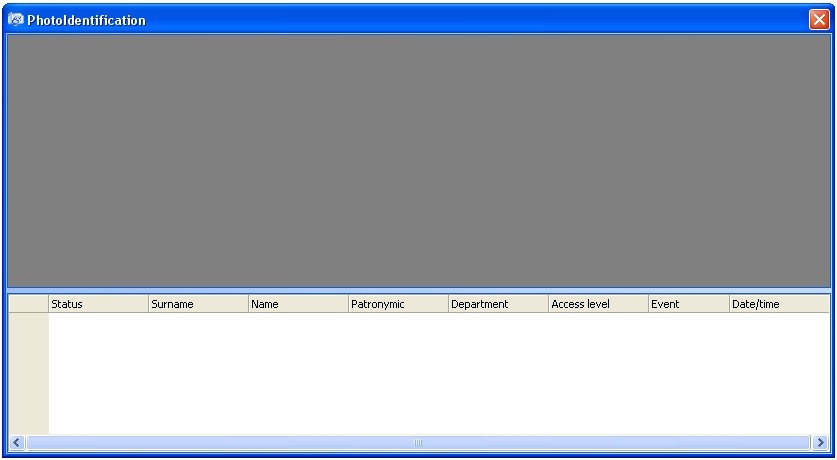

As a result of creating the Photo ID object, a Photo ID operator's query pane is created automatically.
