The creation and configuration of the head Biosmart Palm Vein object in the ACFA-Intellect software package is carried out as follows:

  1. Create the Biosmart Palm Vein object based on the Computer object on the Hardware tab of the System Settings dialog box.

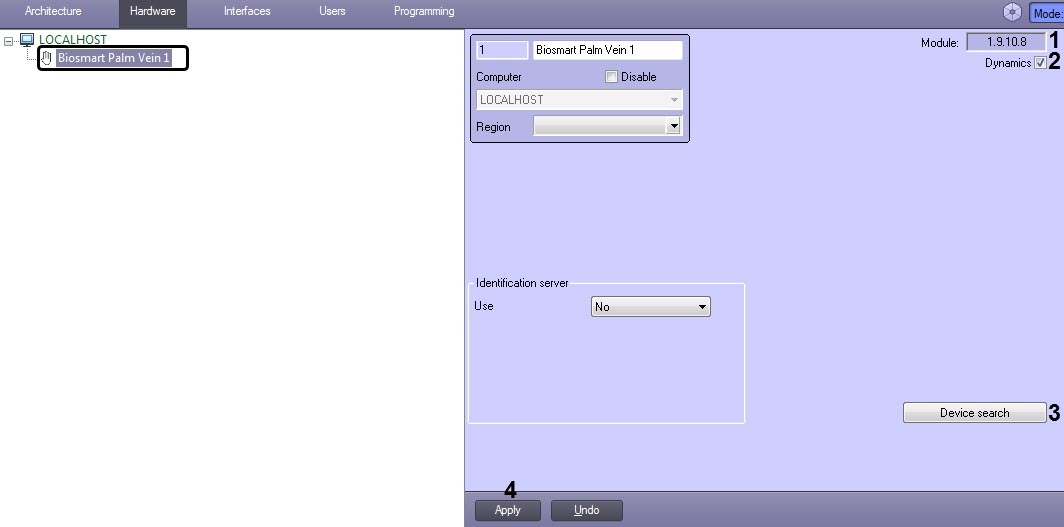

    The current version of the BioSmart UniPass module is displayed in the settings panel of the head object (1).
  2. Set the Dynamics checkbox to enable dynamic forwarding of Access Manager module data to all Biosmart UniPass controllers / terminals. This flag must be left on due to the correct work of the module (2).

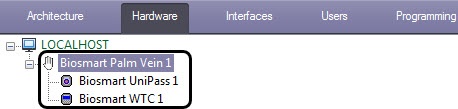

  3. Click the Device search button (3) to start automatic search. If the controller / terminal is connected to the ACFA-Intellect Server, then after clicking the button, child objects will be automatically created.
  4. Click Apply to save changes (4).

Creation and configuration of the Biosmart Palm Vein head object is completed.
