A time zone is created as follows:

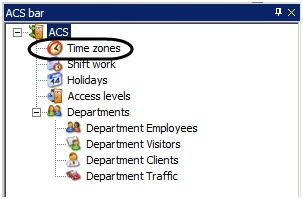

  1. Go to the Time zones section of the ACS bar.

    The information pane will show previously created time zones and the time zone bar will open.

  2. Click the New button (1).

    Note:

    This action can also be performed using the information pane's context menu. Right-click on any point in the information pane to bring up the context menu and then select the New menu item.
  3. In the Name field, enter the name of the time zone (2).
  4. Configure the time zone's intervals. For each interval, do the following:
    1. In the Beginning column of the table, enter the time interval's start time in HH:MM:SS format (3).
    2. In the Ending column of the table, enter the time interval's end time in HH:MM:SS format (4).
    3. To include a day of the week in the time interval, check the box in the corresponding column (5).
    4. Check the Holidays box to include holidays in the time interval (5).
  5. Click Save to save the time zone (6).

The completes the process of creating a time zone.
