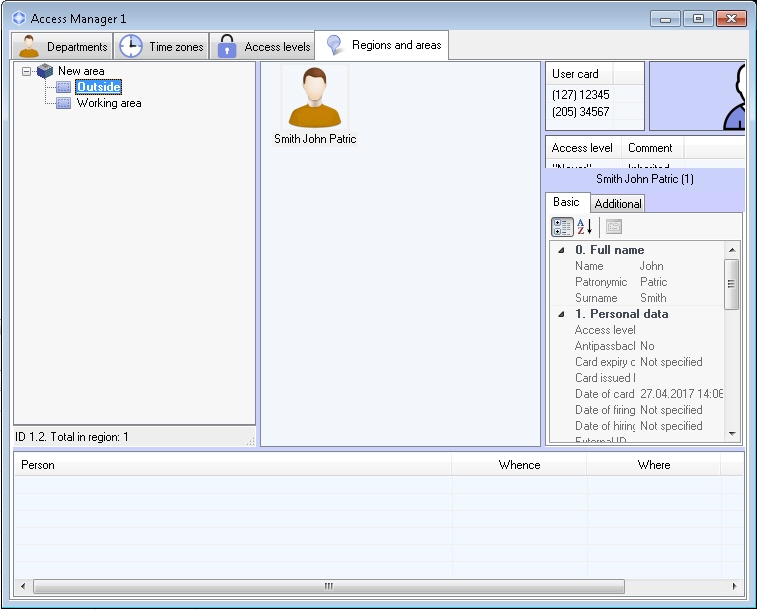

Emergency monitoring is performed on the Regions and areas tab of the Access Manager window.

The Emergency monitoring includes the following features:

  1. Switch over from access-related events in the Event viewer window to the user profile in the Access manager window (see Viewing user profile by an access event in the Event viewer).
  2. Find out the region where user is currently located (see Finding out the region where the user currently is).
  3. Find out user list in the specified region (see Viewing the list of users in the region).
  4. Switch over to the specified region on the Intellect software Map (see Viewing region on the Map).

At switching between interfaces (e.g. from the Map to the Access Manager, or from the Event Viewer to the Access Manager, or backwards), an interface object created on the basis of the same Display object as the source interface is selected for transition.

Configuration of the Map, Event Viewer, Display, Area, Region objects is described in the Intellect software. Administrator's Guide. Operation of these interface objects is described in the Intellect software. Operator's Guide. The most recent versions of these documents are available in the AxxonSoft documentation repository.

Creating, editing and deletion of the Area and Region objects in Access Manager is also possible – see Creating, editing and deleting Area and Region objects.
