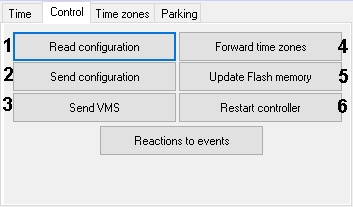

For a Gate controller, configuration management includes the following actions on the Control tab:

  1. Reading configuration of the Gate controller. To perform this action click the Read configuration button (1). To view the read configuration select the Gate parking access point object again
  2. Forwarding configuration to the Gate controller. Click the Send configuration button to perform the forwarding (2).
  3. Forwarding data of the Access Manager/Visitor management System (users, access level, time zones, etc.). Click the Send VMS button to perform this action (3).
  4. Forwarding time zones to the Gate controller. Click the Send time zones button to perform forwarding of time zones (4).

  5. Updating the Gate controller's memory. To update the memory, click Update Flash memory (5).

    Attention!

    Update the controller  memory once per day. Use the ACFA Intellect’s program or script for automatic memory update (see Appendix 1. Automatic updating the Flash memory of Gate controller section).
  6. Restarting the controller. To restart the controller, click Restart controller (6).
