To read the configuration of a KeyKing controller, do the following:

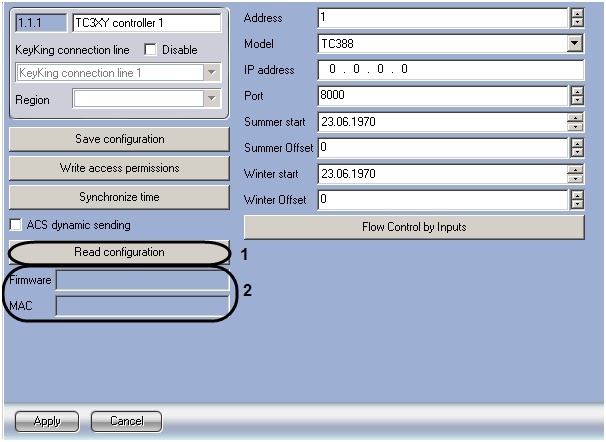

  1. Go to the TC3XY Controller object's settings pane.
  2. Click the Read configuration button (1).

After the configuration has been successfully read, the Firmware and MAC fields will be filled out (2).

Note:

The MAC field is only present for controllers with a TCP connection.

This completes the reading of the KeyKing controller's configuration.
