Regions and areas tab

The Regions and areas tab allows to perform Emergency Monitoring.

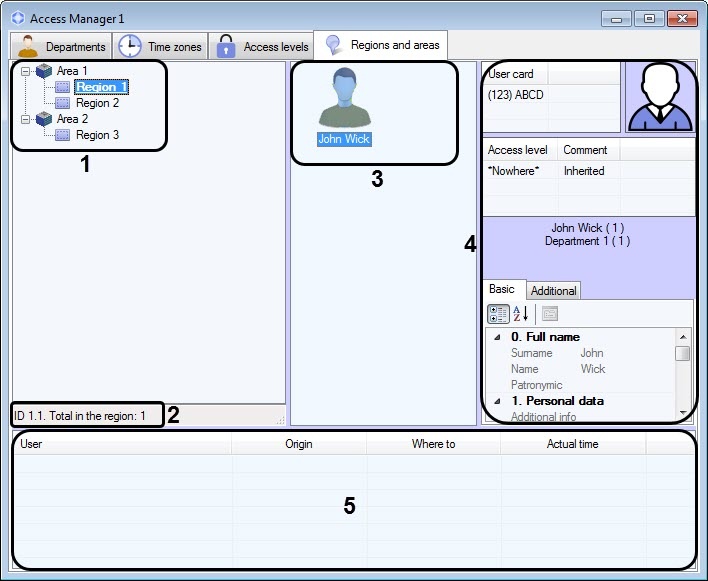

Description of Regions and areas tab elements is given in the table.

No.	Element	Description
1	Areas and regions tree	Hierarchy structure of created areas and regions in the system – see Creating, editing and deleting Area and Region objects
2	Information on the selected area or region	ID of the area/region and the current number of people in it.
3	The list of users in the region	The list of users who are currently located in the region.
4	User parameters	See the Departments tab section.
5	Passes log	Displaying information on users' passages in real time.
