To select the events that you want to send to the Axxon Next Server, do the following:

  1. Go to the settings panel of the Data Bridge object.
  2. Left-click in the table area.
  3. Press the "down" button on the keyboard. As a result, a new line will be added to the table.

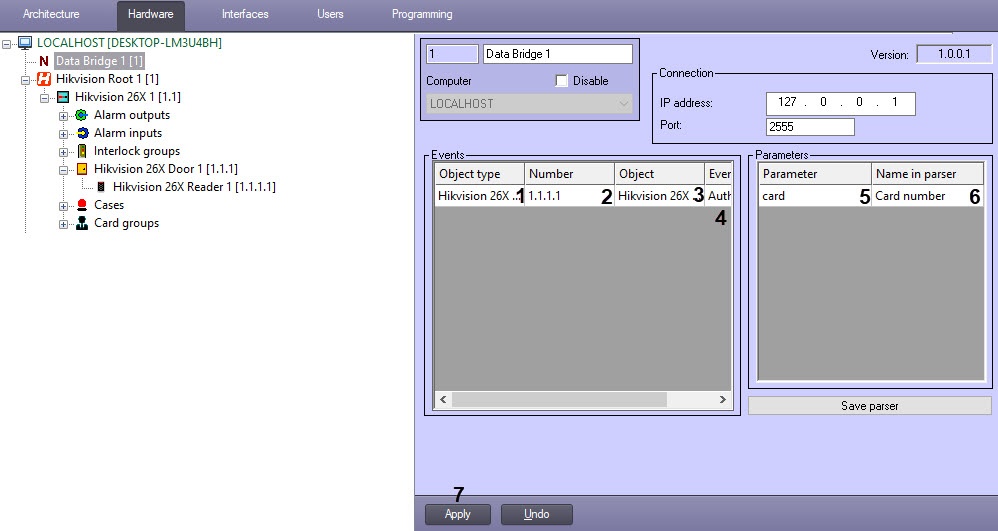

  4. In the Object type drop-down list (1), select a type of the object previously created in the system in order to send its events to Axxon Next.
  5. If events from a specific object of the selected type should be sent, from the Number drop-down list (2), select an identifier of the required object. As a result, the name of the created object will automatically display in the Object field (3). If a number is not selected, the events from all objects of the selected type created in the system will be sent.
  6. From the Event drop-down list (4), select the event that should be sent to the Axxon Next Server.
  7. Select the required line in the Events table.
  8. Specify all parameters of the selected event that should be sent in one of the following ways:

    1. From the Parameter drop-down list (5), select the name of the parameter. The description of the parameter that will display in captions in Axxon Next will be specified in the Name in parser column (6). It's possible to change this description if required.

      Attention!

      The list of the available parameters and their description depends on the settings—see Adding event parameters to DDI file.
    2. In the Parameter field (5), enter the parameter name, and in the Name in parser field (6), enter the parameter description manually. The method of finding out the available parameters is given in Event parameters in the Debug window.

    Note

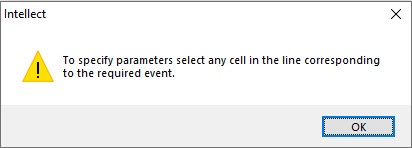

    To add a line to the Parameters table, it's required to select the corresponding event in the Events table. Otherwise, the warning message will display.

  9. Repeat steps 2-7 for all required objects and events.
  10. Click the Apply button (7) to save the changes.

The events that should be sent to the Axxon Next Server are now selected.
