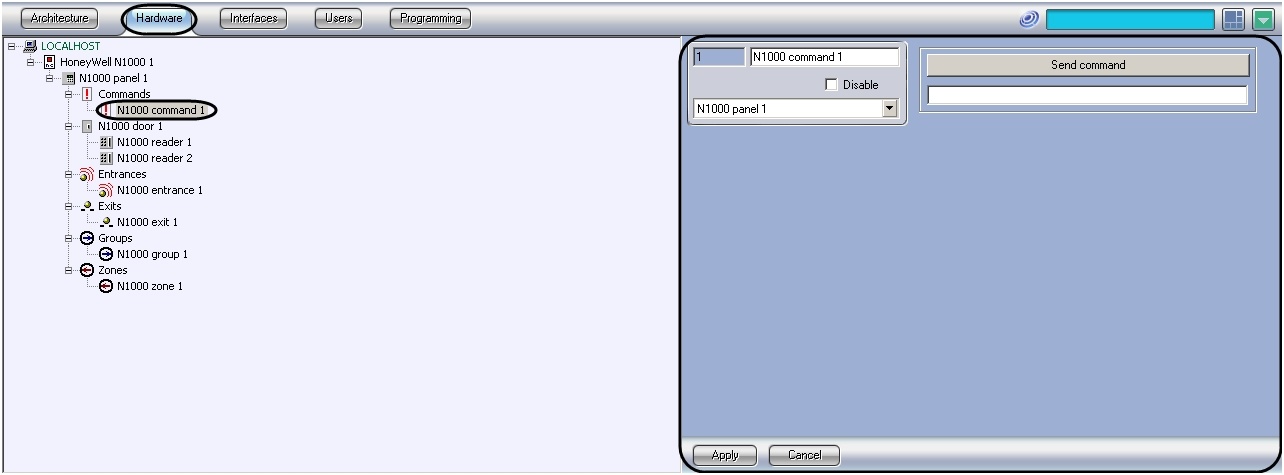

Sending commands to controller is carried out from setting panel of N1000 command object. This object is created on the basis of N1000 panel object on Hardware tab of System settings dialog box.

Sending commands to controller is carried out the following way:

  1. Go to setting panel of N1000 command object.

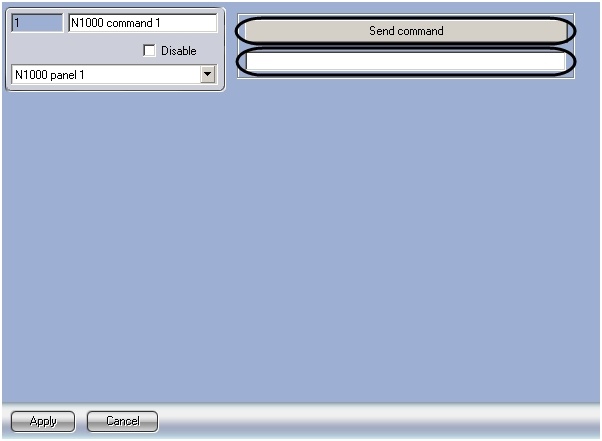

  2. Set command in the line (1).

    Note.

    Description of commands is given in official reference documentation for HoneyWell N1000 system.
  3. Click Send command (2).

Sending command to controller is completed.
