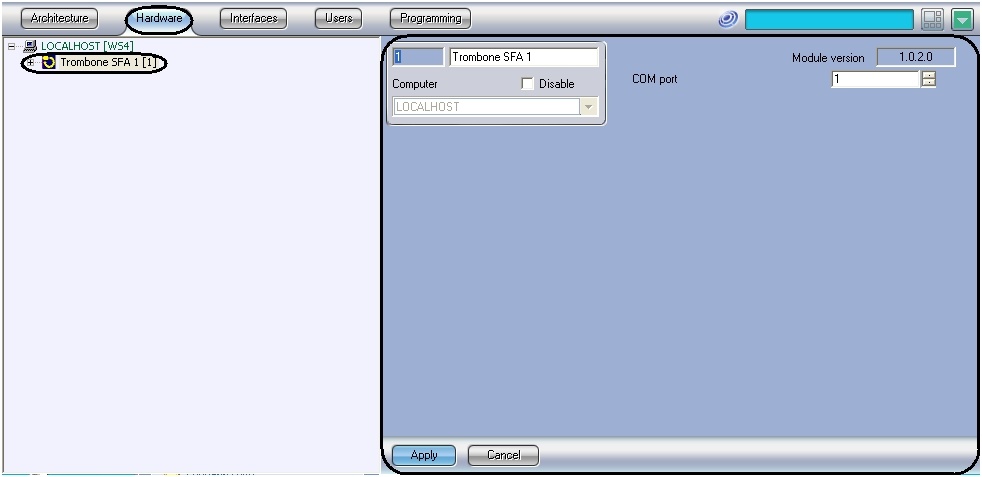

Setting up connection of Trombone SFA to Intellect Server is carried out on the setting panel of Trombone SFA object. This object is created on the basis of Computer object in Hardware tab of System setting dialog box.

  Setting up connection of Trombone SFA to Intellect Server is carried out the following way:

  1. Go to setting panel of Trombone SFA object.

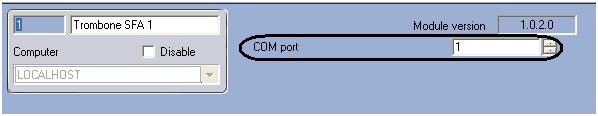

  2. Using up and down buttons specify the COM-port of connection the system to the server.
  3. Click Apply button.

This completes the process of configuring the connection of Trombone SFA devices.
