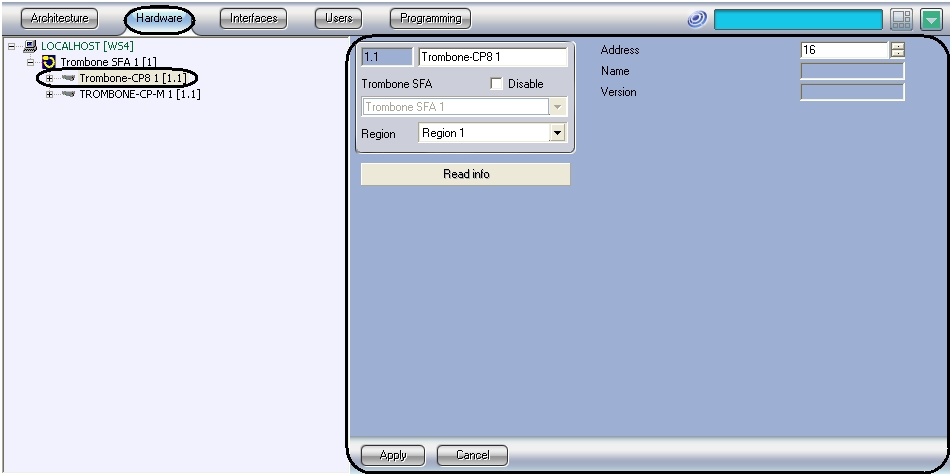

Setting up connection of Trombone-CP8 to Intellect Server is carried out on the setting panel of Trombone-CP8 object. This object is created on the basis of Trombone SFA object in Hardware tab of System setting dialog box.

Setting up connection of Trombone-CP8 device is carried out the following way:

  1. Go to setting panel of Trombone-CP8 object.

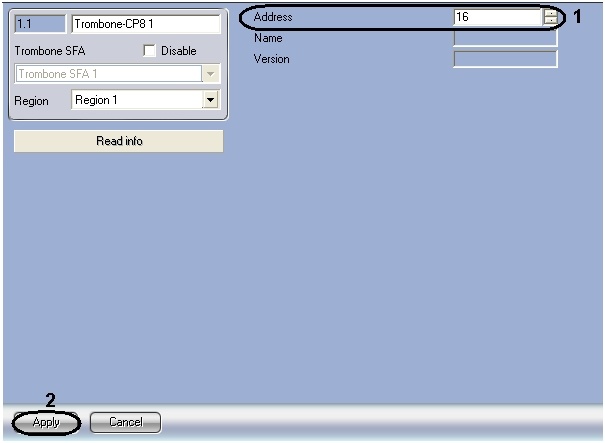

  2. Specify the address of Trombone-CP8 device (1).
  3. Click Apply button (2).

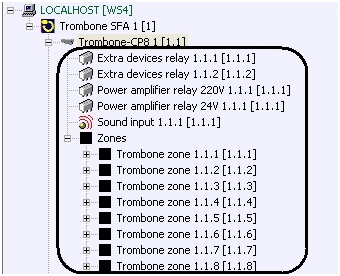

Objects corresponding to executive devices within Trombone FSA will be automatically created after the Trombone-CP8 object connection. Any manually created extra objects will be ignored by the system.

Note:

Events from the corresponding devices won’t be sent to system if the automatically created objects were deleted. User can create the new object to place the deleted ones.

This completes the process of configuring the Trombone-CP8 device connection.
