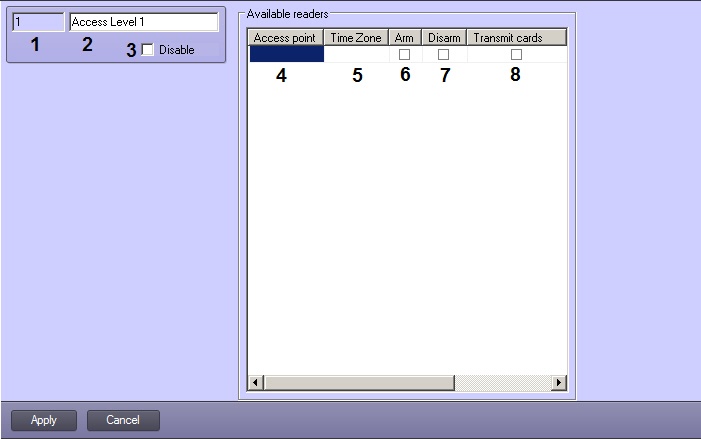

The picture shows the settings panel of the Access levelobject.



The table gives the description of the Access level object settings.

#

Parameter name

Method for setting the parameter value

Parameter description

Default value

Value range

1

Identification number field

Automatically

Shows the identification number of the Access level object in the system

-

Depends on number of Access level objects in the system

2

Name field

Enter the value in the field

Sets the name of the User object in the system

Access level

A line representing a sequence of any symbols
(letters, digits, service characters except < | > symbols), not case-sensitive.

Number of symbols – from 1 to 60.

3

Disable checkbox

Is set in a checkbox

Sets the status (enabled/disabled) of the Access level object in the system

False

True - the Access level object is enabled and in use

False - the Access level object is disabled and not in use

4

Access point dropdown list

Is selected in the list

Card reader through which the employees are performing access

-

Depends on the readers created in the system

5

Time zone dropdown list

Is selected in the list

Time zone, during which the access will be allowed through the corresponding access point

-

Always

Never

The list of Time zone objects created in the system

6Arm checkboxIs set in a checkbox

Enables arming of access point after presenting access card by user.

Note. This function should be supported by hardware.

False

True – access point is armed after presenting access card by user

False – access point is not armed after presenting access card by user

7Disarm checkboxIs set in a checkbox

Enables disarming of access point after presenting access card by user.

Note. This function should be supported by hardware.

False

True –access point is disarmed after presenting access card by user

False – access point is not disarmed after presenting access card by user

8Transmit cards checkboxIs set in a checkbox

Enables sending access cards to controller after presenting access card by user.

Note. This function should be supported by hardware.

Function of this checkbox can differ depending on the integration module in use. For example, in PERCo-S-20 integration this checkbox enables commission mode.

False

True – access cards are sent to controller after presenting access card by user.

False – access cards are not sent to controller after presenting access card by user.
