Settings panel of the Department object

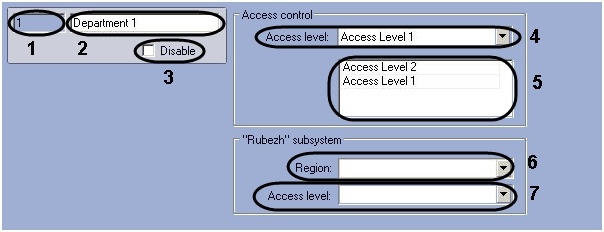

The picture shows the settings panel of the Department object.

The table gives the description of the Department object settings.

#	Parameter name	Method for setting the parameter value	Parameter description	Default value	Value range
1	Identification number field	Automatically	Shows the identification number of the Department object in the system	-	Depends on number of Department objects in the system
2	Name field	Enter the value in the field	Sets the name of the Department object in the system	Department	A line representing a sequence of any symbols (letters, digits, service characters except < \| > symbols), not case-sensitive. Number of symbols – from 1 to 60.
3	Disable checkbox	Is set in a checkbox	Sets the status (enabled/disabled) of the Department object in the system	False	True - the Department object is enabled and in use False - the Department object is disabled and not in use
The Access control group
4	Access level dropdown list	Is selected in the list	Sets the department's access level	-	The list of Access level objects created in ACFA Intellect (on the Programming tab or via the VMS) and also Full access and Access forbidden levels.
5	List of access levels	Is selected in the list. To add a new row in the table click left mouse button in any empty space of the table and press "down" arrow on the keyboard.	Sets the department's access level list	-	The list of Access level objects created in ACFA Intellect (on the Programming tab or via the VMS)
The "Rubezh" subsystem group
6	Region dropdown list	Is selected in the list	Sets the Region object for the Rubeg-07 ACS (discontinued)	-	The list of Region objects in the ACFA Intellect software
7	Access level dropdown list	Is selected in the list	Sets the access level for the Rubeg-07 ACS (discontinued)	-	The list of Access level objects created in ACFA Intellect (on the Programming tab or via the VMS) and also Full access and Access forbidden levels.
