Settings panel of the User object

The pictures show the settings panel of the User object.

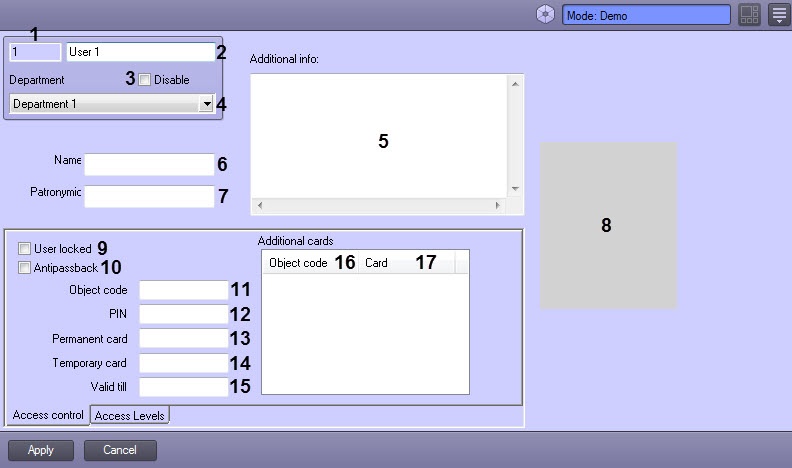

Settings panel of the User object The Access control tab.

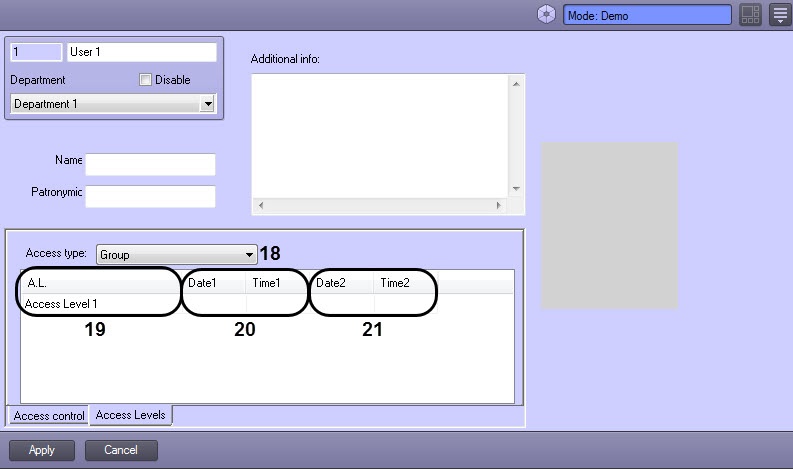

Settings panel of the User object The Access levels tab.

The table gives the description of the User object settings.

#	Parameter name	Method for setting the parameter value	Parameter description	Default value	Value range
1	Identification number field	Automatically	Shows the identification number of the User object in the system	-	Depends on number of User objects in the system
2	Surname field	Enter the value in the field	Sets the surname of the User object in the system	User	A line representing a sequence of any symbols (letters, digits, service characters except < \| > symbols), not case-sensitive. Number of symbols – from 1 to 60. Do not use rs as username when registering Operator accounts as this name is used by default in Intellect Web Report System.
3	Disable Checkbox	Is set in a checkbox	Sets the status (enabled/disabled) of the User object in the system	False	True - the User object is enabled and in use False - the User object is disabled and not in use
4	Department dropdown list	Is selected in the list	Sets the parent Department object for this User object	Name of the parent Department object	Depends on number of Department objects in the system
5	Additional info field	Enter the value in the field	Additional user information	-	A line representing a sequence of any symbols
6	Name field	Enter the value in the field	Sets the name of the User object in the system	-	A line representing a sequence of any symbols (letters, digits, service characters except < \| > symbols), not case-sensitive. Number of symbols – from 0 to 255.
7	Patronymic field	Enter the value in the field	Sets the patronymic of the User object in the system	-	A line representing a sequence of any symbols (letters, digits, service characters except < \| > symbols), not case-sensitive. Number of symbols – from 0 to 255.
8	User photo area	-	Displays a user's photo	-	-
The Access control tab
9	User locked checkbox	Is set in a checkbox	Is set if the user is to be locked.	False	True – the user is locked. False – the user is active.
10	Antipassback checkbox	Is set in a checkbox	Is set if the user is not allowed to go twice through the reader in the same direction.	False	True – anti-passback enabled. False – anti-passback disabled.
11	Object code field	Enter the value in the field	Facility code of the user's access card	-	Depends on the type of cards in use.
12	PIN field	Enter the value in the field	PIN-code of the user's access card	-	Depends on the ACS in use
13	Permanent card field	Enter the value in the field	User's access card number	-	Depends on the type of cards in use.
14	Temporary card field	Enter the value in the field	User's temporary access card number	-	Depends on the type of cards in use.
15	Valid till field	Enter the value in the field	Day inclusive, until which the user's access card is valid (which is indicated in the Permanent card field). The card will expire on the next day at 00:00 from the specified date	-	Date in DD.MM.YYYY format
Additional cards table Note. In the Visitor Management System, the additional cards are specified separated by spaces after the parameters of the main card. The functionality of assigning users additional cards is to be supported by the hardware.
16	Object code field	Enter the value in the field	Facility code of the user's additional access card	-	Depends on the type of cards in use.
17	Card code field	Enter the value in the field	Number of the user's additional access card	-	Depends on the type of cards in use.
The Access levels tab.
18	Access type dropdown list	Is selected in the list	Sets the way of choosing access level for user	-	Group - the employee is assigned the access level of the department Access forbidden - the employee is not allowed to access, even if the department assigned a different access level, allowing access Full access - the employee has a full access , even if the department assigned a restricted access level List - the employee is assigned a list of access levels having priority over the department access level.
19	A.L. dropdown list	Is selected in the list	Can be used if the List value is selected in the Access type list. Sets the user's access level list	-	The list of Access level objects created in ACFA Intellect (on the Programming tab or via the VMS)
20	Date1 and Time1 fields	Enter the value in the field	Allow to set the beginning date of the temporary access level.	-	Date in DD-MM-YY and time in HH:MM:SS format.
21	Date2 and Time2 fields	Enter the value in the field	Allow to set the ending date of the temporary access level.	-	Date in DD-MM-YY and time in HH:MM:SS format.
