To configure the Time and Attendance object in ACFA Intellect, do the following;

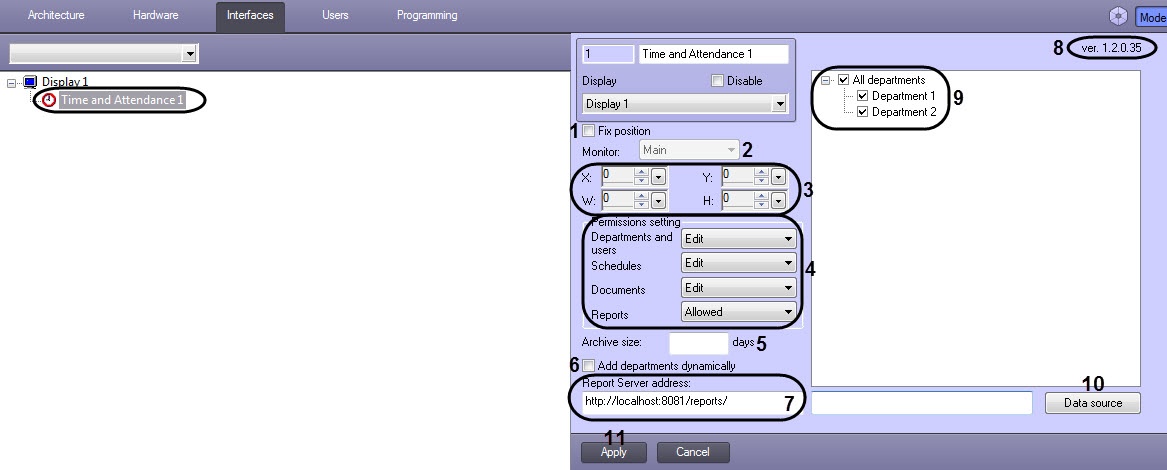

  1. Go to the Time and Attendance object settings panel. It is located on the Interfaces tab of the System Settings dialog window.

    Note

    In the ver. field the current module version is displayed (8).
  2. Set the Fix position checkbox to fix the Time and Attendance module interface window in the specified desktop coordinates (1).
  3. From the Monitor drop-down menu (2), select the monitor on which the Time and Attendance module interface window should be displayed, if the Fix position checkbox is set.
  4. To configure the position of the Time and Attendance module interface window, specify the coordinates of the window’s upper left corner in the X: and Y: fields and its width and height in the W: and H: fields (3).
  5. In the Permissions settings field (4), the rights for operator working with the client part of the Time and Attendance module are configured.

    1. From the Departments and users drop-down menu, select the operator access level to the Departments navigation panel.

      Access level

      Description

      Editing

      Full access, editing is available

      Viewing

      Read-only access

      Forbidden

      No access

    2. From the Schedules drop-down list select the operator access level to the Schedules navigation panel.
    3. From the Documents drop-down list select the operator access level to the Documents navigation panel.
    4. From the Reports drop-down list select the operator access level to the Reports navigation panel.
  6. In the Archive size field specify the size of the events archive in days (5).
  7. Set the Add departments dynamically checkbox to automatically add all departments created in the Visitor Management System module to the Time and Attendance module (6).
  8. In the Report Server address field specify the address of the reports subsystem server (7).
  9. In the field 9 select the departments that should be available in the Time and Attendance module (9).
  10. Click the Data source button to select the database source (10).

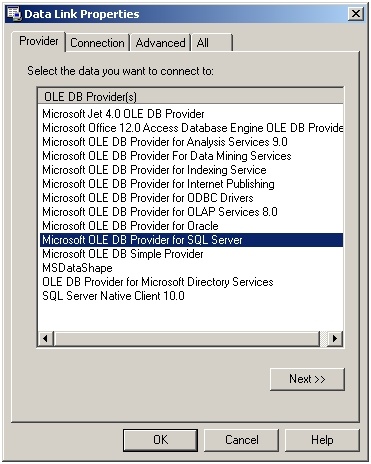

    1.  In the opened Data link properties dialog box on the Data provider tab select the data source (SQL Server).

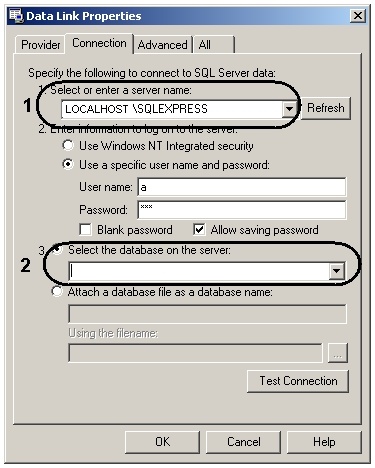

    2. On the Connection tab, from the 1. Select or enter a server name drop-down menu (1), select the required SQL server.

      Note

      Selecting the way of authorization on the MS SQL server is described in Operational architecture schemes available for some service modules.
    3. From the Select the database on the server drop-down menu (2), select the required database.
    4. To save changes click OK button.
  11. Click Apply button to save changes.

The Time and Attendance object is configured.
