To synchronize time between the ACFA Intellect software package and NCG-9 controller, do the following:

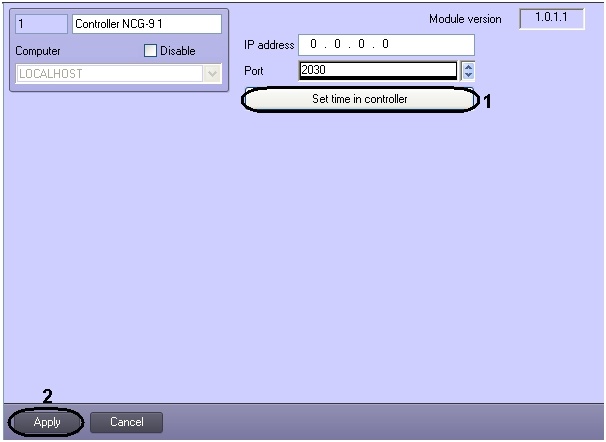

  1. Go to the Controller NCG-9 object’s settings panel.
  2. To synchronize time between the ACFA Intellect software package and NCG-9 controller click the Set time in controller button (1).
  3. Click Apply (2).

Time synchronization of the ACFA Intellect software package and NCG-9 controller is completed.
