The ACFA Intellect Software System supports storing user photographs on several computers.

The ACFA Intellect Software System's advanced settings utility tweaki.exe is used to create a single photograph database. There are two ways to launch the tweaki.exe utility:

  1. From the Windows Start menu: Start ->All Programs ->Intellect ->Utilities ->Advanced settings.
  2. From the Tools folder of the ACFA Intellect Software System's installation directory: <Intellect installation directory>\Tools\tweaki.exe .

To configure the creation of a single photograph database, do the following:

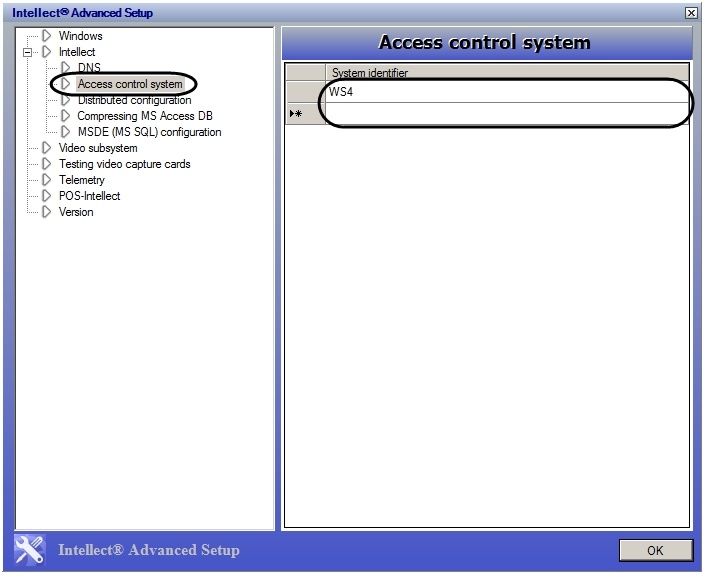

  1. Select the Access Manager mode in the Intellect Advanced Setup window (1).

  2. In the System identifier column, enter the names of the Servers/RAWs that will store the photographs assigned by a user using the Access Manager module (2).

    Note:

    The specified Servers/RAWs must be connected to the Intellect Server to which photos from Access Manager are added. Detailed information about configuring server connections is given in Intellect Software System: Administrator's Guide. However, the Access Manager module does not have to be installed on the specified computers. Do not add Clients to the list.

    Note:

     Only photographs that have been newly added using the Access Manager module will be placed on the specified computers. Photographs added to the system before the configuration of the creation of a single photograph database will not be distributed to these computers.

    Note:

    Photographs will be stored on both the computers specified using the tweaki.exe utility as well as the computer from which photographs are added. Added photographs are stored in: <Intellect installation directory>\Bmp\Person.
  3. Click the OK button (2).

This completes the process of configuring the creation of a single photograph database.
