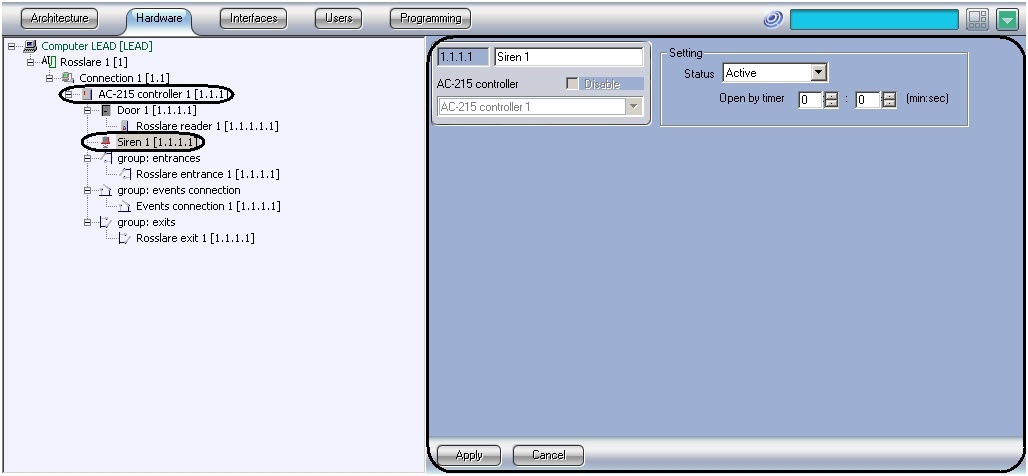

Configuration of AC-215 controller siren is performed on the setting panel of the Siren object. This object is created on the basis of the AC-215 controller object on the Hardware tab of the System settings dialog box.

To configure AC-215 controller siren do the following:

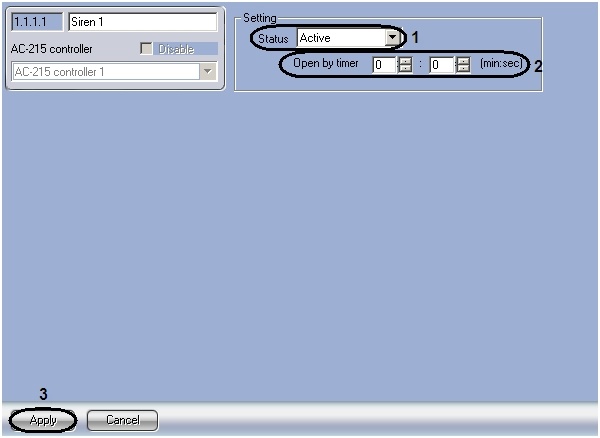

  1. Go to the setting panel of the Siren object.
  2. From the Status dropdown list select the siren status (1).
  3. In the Open by timer field using up-down keys set the time (in minutes) at the expiration of which the siren switches (2).
  4. To save changes click Apply (3).

Configuration of siren is completed.
