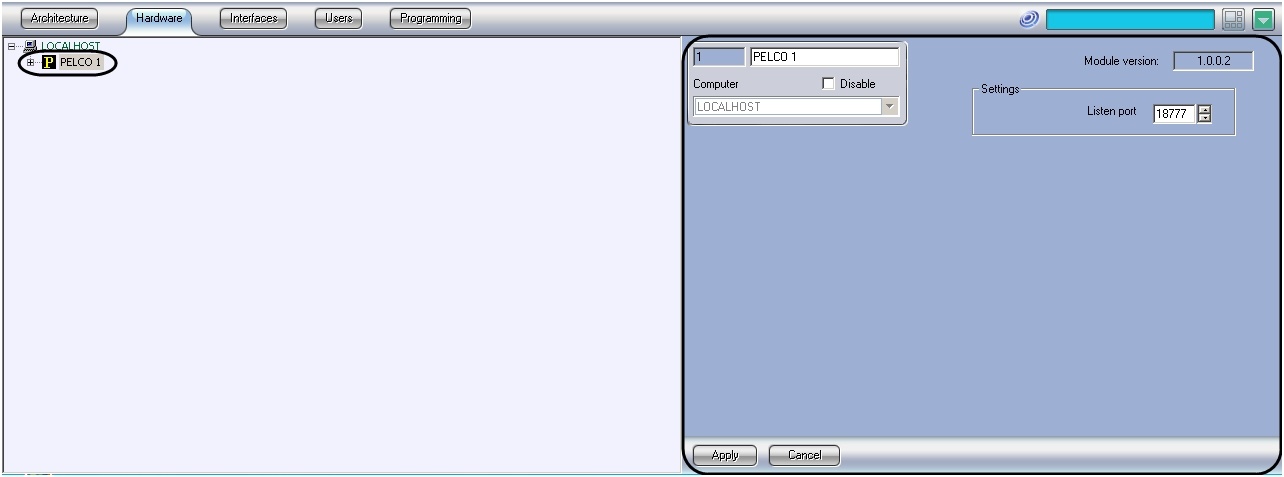

To configure the Pelco module go to the Pelco object’s settings panel. To create this object, go to the System settings dialog box, click the Hardware tab and select a parent Computer (LOCALHOST) object.



To configure the Pelco ACS module do the following:

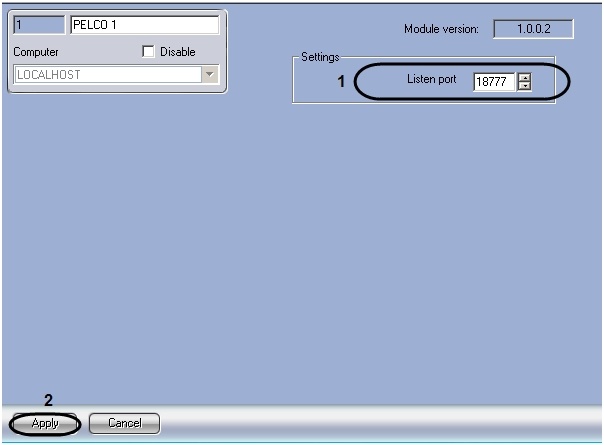

  1. Go to the Pelco object’s settings panel.
  2. Enter the port number for message receiving from Pelco ACS in the Listen port (1).
  3. Click the Apply button (2).

Configuration of Pelco ACS connection is completed.
