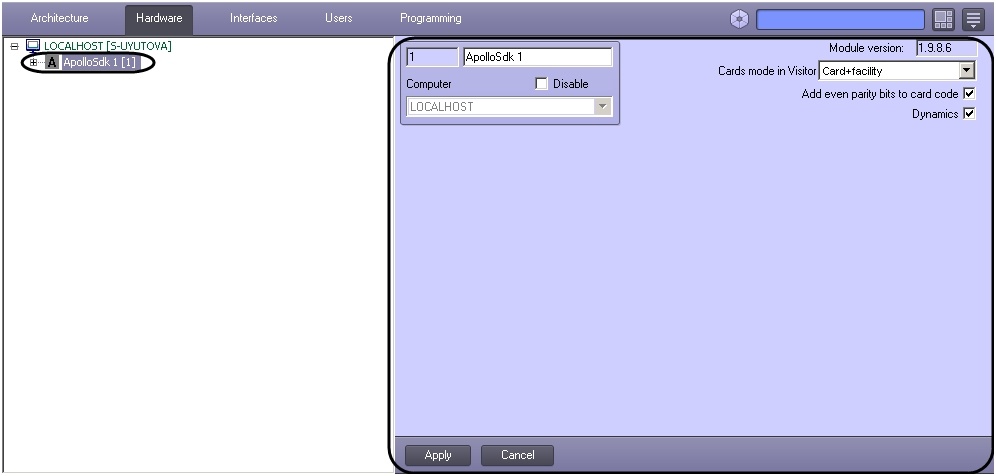

To configure access cards, go to the ApolloSDK object settings panel. Create this object based on the Computer object on the Hardware tab of the System settings dialog box.

Note.

 In the Module version field, the current version of the ApolloSDK integration module is displayed.

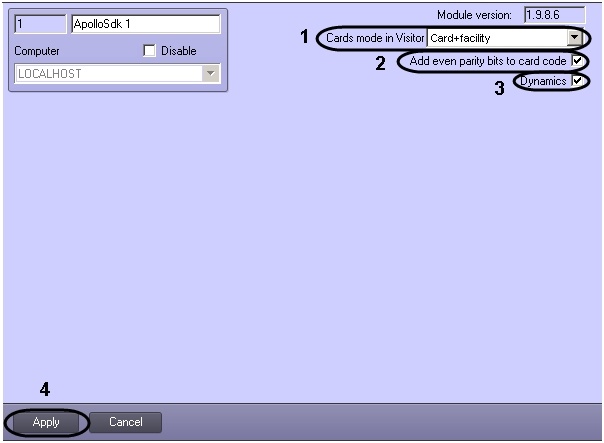

To configure access cards do the following:

  1. Go to the ApolloSDK object settings panel.
  2. In the Cards mode in Visitor drop-down list select the way cards are set in the Visitor Management System module (1).
  3. Card+facility: card number and facility code are in use.
  4. Card only: only card number is in use.
  5. If the even parity bit is to be added to the card code, set the corresponding checkbox (2).
  6. If changes in access parameters are to be dynamically send to the ApolloSDK system, set the Dynamics checkbox (3).
  7. Click Apply (4).

Access cards are now configured.
