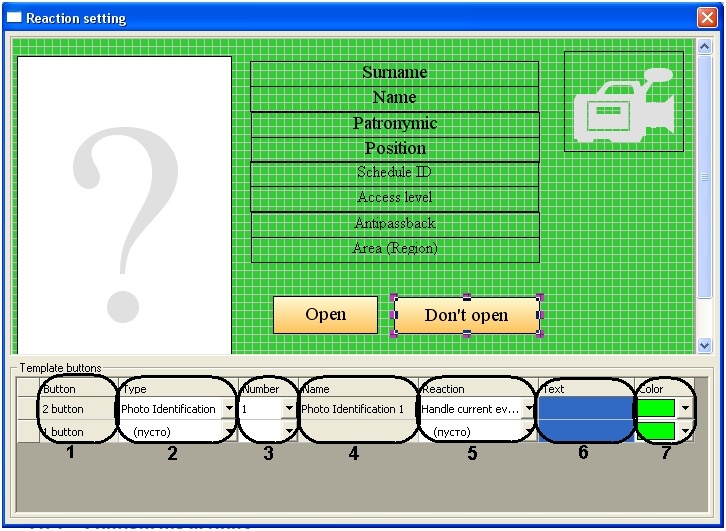

To go to the action configuration editor, go to the Actions field and click Configure (see the figure in Configuring the Photo ID window's objects and events, 8). The action configuration dialog box opens. The dialog box shows the pass template. Use the dialog box to assign each button of the template an action.

In the lower part of the dialog box, you will see the Template buttons table, which contains all the buttons of the template.

To assign an action to a button, go to the table and select an action and a device. The action is sent to the device when the button is clicked. In this table, you can also set a text message to show in the Photo ID window when this action is used. You can also set a color to highlight this text message.

The table below escribes the table fields.

Seq. no.

Element name

Element description

1

Button

This field shows the button ID.

2

Type

Use this field to select a device type.

3

Number

Use this field to select an object by number assigned to it in the ACFA Intellect system.

4

Name

This field shows the name of the device selected.

5

Action

Use this field to select an action for the device selected. The action is sent to  the device when the button is clicked.

6

text

Use this field to enter a text message for the device selected. The text message is shown when the selected action is used.

7

Color

Use this field to set a color. The template's info line is highlighted with this color when the selected action is used.
