The data recording (users, equipment configuration) to Rosslare devices is provided by the software package.

To record data to Rosslare devices do the following:

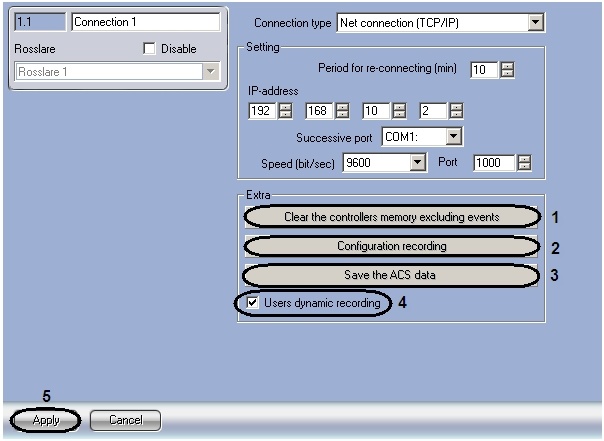

  1. Go to the setting panel of the Connection object.
  2. To clear the controllers memory excluding events click Clear the controllers memory excluding events (1).
  3. To record the Rosslare equipment configuration in ACFA Intellect software package to Rosslare devices click Configuration recording (2).
  4. To record users, time zones and access levels to Rosslare devices click Save the ACS data (3).
  5. To send changes of users, time zones and access levels to Rosslare devices set the Users dynamic recording checkbox (4).
  6. To save changes click Apply (5).

Data recording to Rosslare devices is completed.
