For transferring the user information entered via the ACFA Intellect system or using the ACS module, as well as time zones, access levels, and access cards assigned to users, from the system to the Pelco controller, the following steps must be carried out:

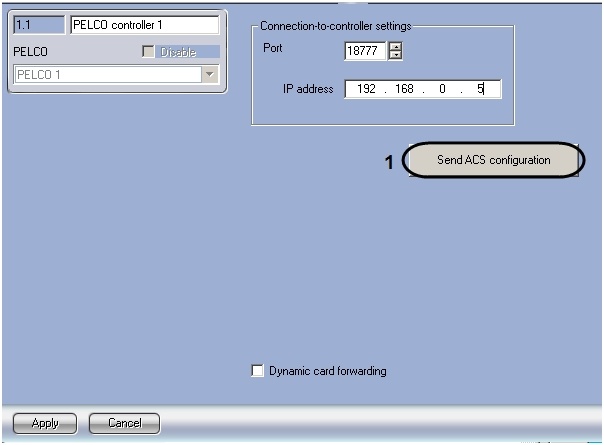

  1. Go to the Pelco Controller settings panel.
  2. Click on Send ACS configuration (1).

Note.

Only those users who are assigned the Full access level, or the access level in which the Pelco controller reader is selected are sent to the controller. Users with empty fields for Object code and Card are not transferred to the controller. Details on setting the user access levels can be found in the Visitor Management System Module Settings and Operation Guide.

Transfer of the configuration to the Pelco controller is complete.
