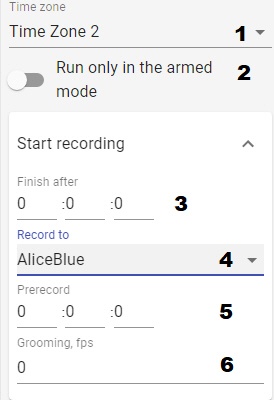

Configure the macro as follows:

  1. Select the required object in the object tree.
  2. Select the time zone within which the macro will be active (1).
  3. If it is necessary to run the macro command only in the armed mode, activate the corresponding switch (2).
  4. Set the time after which it is necessary to stop recording (3).
  5. Select an archive to write to (4).
  6. Set the pre-alarm recording time (5). The maximum pre-alarm recording time is 30 seconds.
  7. If you have cameras in continuous recording mode and you want to record with specified fps change the frame rate, enter the required frame rate (6). After the macro command completes, recording resumes at the frame rate specified in the archive settings.
    You can use special codes:
    0 — do not change the current frame rate (default);
    -1— record only I-frames;
    1000 — record at the standard fps of the camera.
  8. Click  to save changes.
