Creating a dashboard

Create a dashboard as follows:

  1. On the My dashboards tab, click the button.

  2. Click the button to create widgets (see Configuring the widgets).

    Note

    Widgets are required to create a dashboard. After you create widgets, they will be automatically added to the dashboard starting from the top left corner.

  3. When you finish adding the necessary widgets, click the button.

  4. Enter the dashboard name (1).
  5. If necessary, enter a description (2).
  6. Set one or more tags (3). In the list of available dashboards, the created dashboard will be displayed in each tag group (see Selecting a dashboard).
  7. Select the language in which the dashboard data will be displayed (4).
  8. Set the Public checkbox to make this dashboard available to other users.

  9. To download the created dashboard template to a JSON file, click the button. Later on, this file can be imported by other user (see Importing dashboards from file).

  10. Click the Create button. To cancel the creation of the dashboard, click the Cancel button.

The dashboard is created.

Editing a dashboard

Edit the dashboard as follows:

  1. Select a required dashboard on the My dashboards tab.
  2. Click the button.
  3. Make the necessary changes.

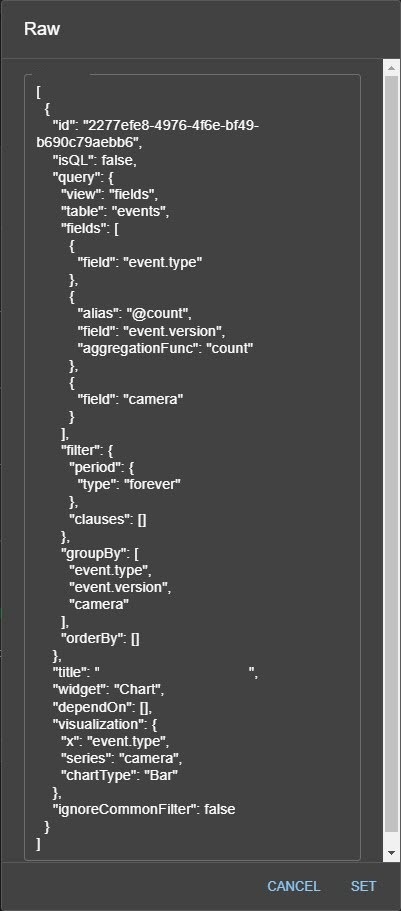

  4. To view and edit the source code of the dashboard, do the following:
    1. Click the button.
    2. If necessary, edit the source code.
    3. Click the Set button to save the changes. To return to step 3, click the Cancel button.
  5. Click the button.

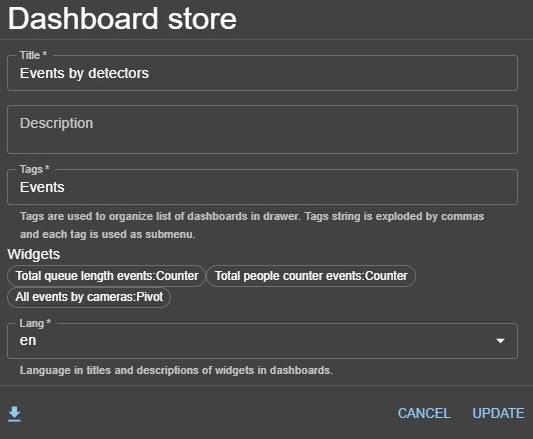

  6. In the Dashboard store window, click Update.

The dashboard is now edited.

Deleting a dashboard

Delete the dashboard as follows:

  1. Set the checkbox next to the required dashboard on the My dashboards tab.
  2. Click the button.

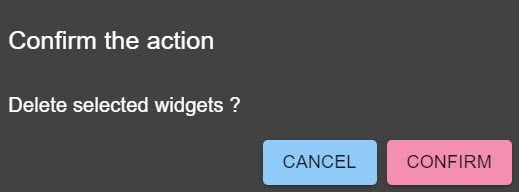

  3. To delete the selected dashboard, click the Confirm button. To return to step 1, click the Cancel button.

The dashboard is now deleted.
