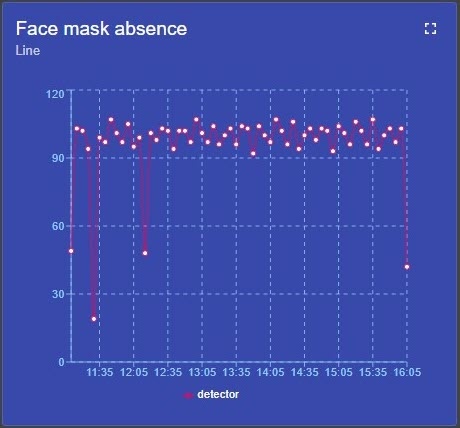

Configure the Chart widget as follows:

  1. Configure common parameters (see Common widget settings in AxxonData).

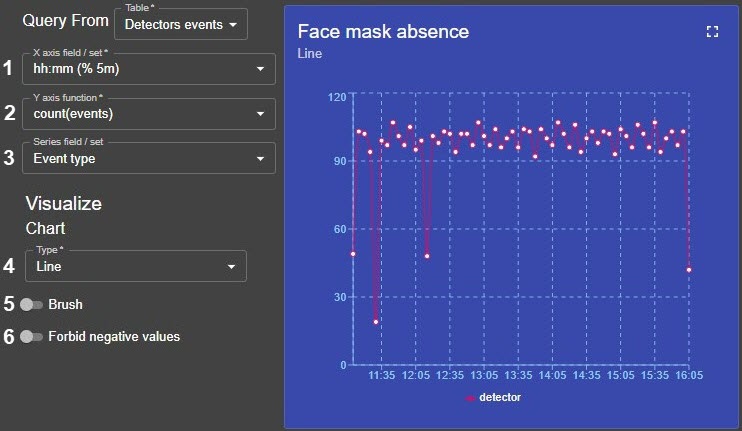

  2. Select the field that will be on the chart along the X axis (1).

  3. Select the field that will be on the graph along the Y axis (2).

  4. Select the field to be analyzed (3).
  5. Select the chart type (4).
  6. In order to be able to change the chart scale when working with it, activate the Brush parameter (5).
  7. If necessary, enable the Forbid negative values option (6).
  8. Click Save.

The Chart widget is configured.
