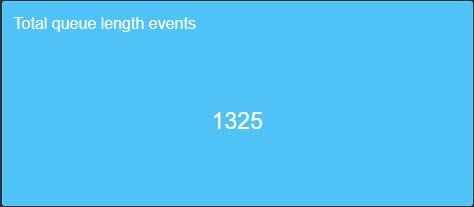

Configure the Counter widget as follows:

  1. Configure common parameters (see Common widget settings in AxxonData).

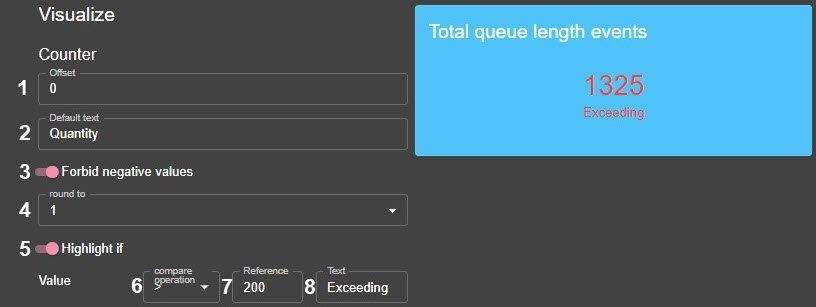

  2. If necessary, set the offset of the initial value (1). For example, if you set the offset to 5, then the counter will display the number of events five less than it actually is.

  3. Enter the text that will be displayed under the number of events (2).

  4. If necessary, enable the Forbid negative values option (3).

  5. From the round to drop-down list (4), select a value that corresponds to the number of decimal places to be displayed.

  6. You can change the color of the counter to red if the number of events meets the specified conditions. To do this:

    1. Activate the Highlight if parameter (5).

    2. Select the operation (6).

    3. Set the reference value (7).

      Note

      In the example on the image above, the counter will turn red if the number of events is strictly more than 200.

    4. Enter the text that will be displayed under the number of events in case of alarm (8).
  7. Click Save.

The Counter widget is configured.
