ATM-Intellect description

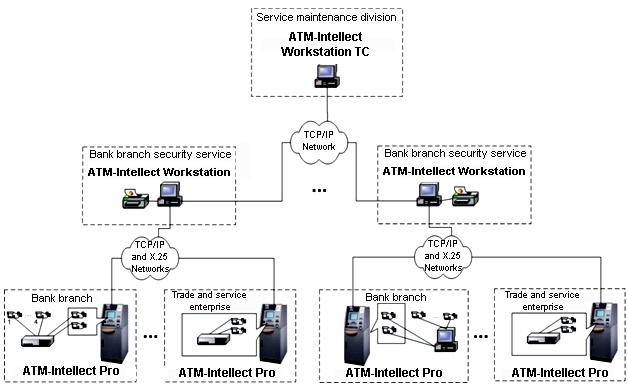

ATM-Intellect is a territorially distributed system which consists of the following components:

1. Local ATM video security systems (ATM-Intellect Pro).
2. Remote video controllers for ATM groups (ATM-Intellect Workstation).
3. Remote control of VSSoAN technical condition (АТМ-Intellect Workstation TC).

ATM-Intellect Pro is placed directly at the installation site of ATMs in bank branches or trade and service enterprises. ATM-Intellect Pro provides recording of the video coming from the camera into a local video archive, digital signal processing from discrete sensors installed on the ATM and transfer of alarm messages on ATM-Intellect Workstation.

ATM-Intellect Workstation is placed in the bank security departments. It combines a group of ATM-Intellect Pro on a territorial basis, and provides reception and visualization of alarm messages from ATM-Intellect Pro, and requests to video archives of ATM-Intellect Pro.

ATM-Intellect Workstation and ATM-Intellect Pro interaction is performed over TCP / IP or X.25 data network protocols using "regular" ATM link. The system also provides the option of direct interaction between ATM-Intellect Workstation and ATM-Intellect Pro without using "regular" ATM link.

ATM-Intellect Workstation TC is placed in the branch of a bank or in the service company and provides VSSoAN technical condition monitoring. Data on the ATM-Intellect Pro technical condition are supplied to ATM-Intellect Workstation TC through the ATM-Intellect Workstation. Interaction between ATM-Intellect Workstation TC and ATM-Intellect Workstation is performed over the TCP/IP network data transfer protocol.

When creating and developing VSSoAN of a bank, several ATM-Intellect Workstation are supposed to be installed, each of them interacts with a group of ATM-Intellect Pro combined on a territorial basis.

ATM-Intellect Pro interacts with the ATM host computer via the messaging communication channel using Ethernet 10/100Base-T controller or asynchronous RS-232 interface.

VSSoAN provides the transfer of information (images or video clips) into the external systems when the situations involving fraud or vandalism in the ATM network are discovered.
